SecuGen Hamster Pro Duo CL

General view
Hamster Pro Duo CL
Click to zoom

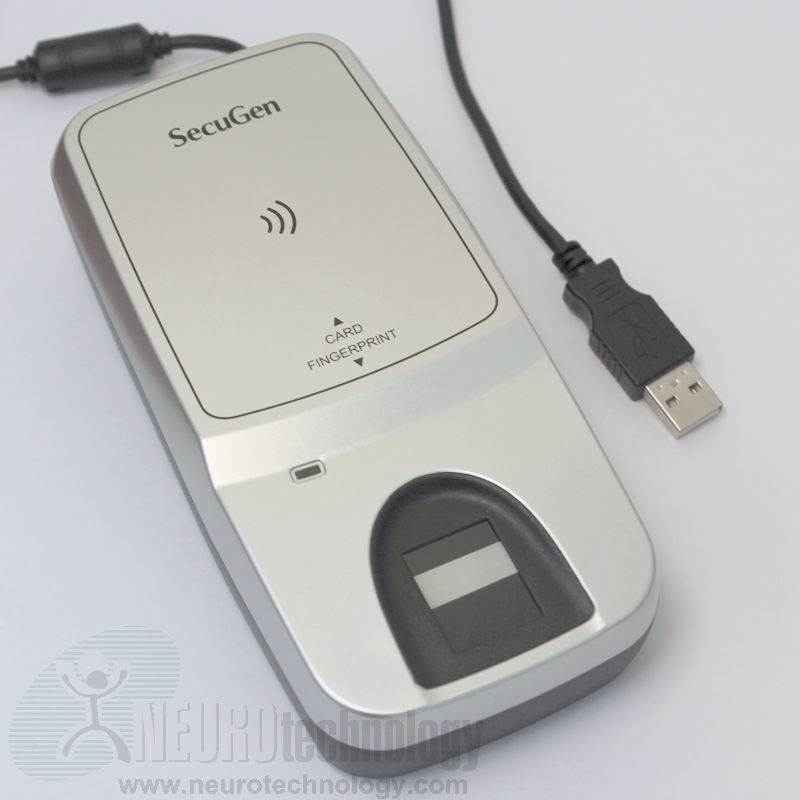

SecuGen Hamster Pro Duo CL combines optical fingerprint scanner and contactless smart card reader in one device.

The fingerprint sensor is FBI FIPS 201 / PIV and Mobile ID FAP 20 compliant.

The manufacturer specifies that fingerprint scanner is based on a rugged sensor, which is also resistant to scratches, impacts and electrostatic shock. Also specified that the scanner rejects latent fingerprints and 2-D spoof fingerprint images (i.e. photocopies), as well as captures problematic fingerprints like dry, moist, aged or scarred.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

General
Scanner Name SecuGen Hamster Pro Duo CL
Manufacturer SecuGen Corporation
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Android
Device size 78 x 160 x 38 mm (3.1" x 6.3" x 1.5")
Device weight 250 grams (8.8 oz)
Operating temperature 0°C ~ +50°C
Operating humidity 10-90 %
Fingerprint reader
Resolution 500 ppi
Image capture area (Platen size) 18 x 23 mm (0.7" x 0.9")
Fingerprint image size 300 x 400 pixels
Sensor type Optical
Illumination LED
Contactless NFC card reader
Standard compliancy ISO18092, ISO14443, ISO7816, PC/SC, CCID, LASCOM, EN 60950 / IEC 60950
Supported protocols ISO 14443 T=CL, T=CL Emulation for MIFARE, ISO 18092, FeliCa, NFC tags
Supported interfaces ISO 14443 Type A and B, Mifare, FeliCa, NFC (ISO/IEC 18092)
Interface speed up to 420 kbps
Operating distance up to 50 mm
Operating frequency 13.56 MHz

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other SecuGen scanners

Neurotechnology SDKs also include support modules for these SecuGen scanners:
