DERMALOG ZF1

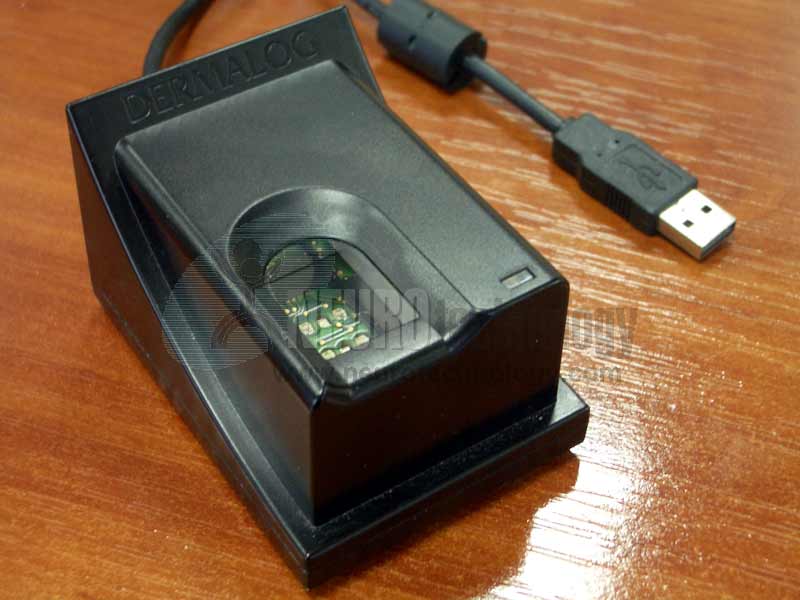

General view
DERMALOG ZF1 fingerprint scanner, general view
Click to zoom

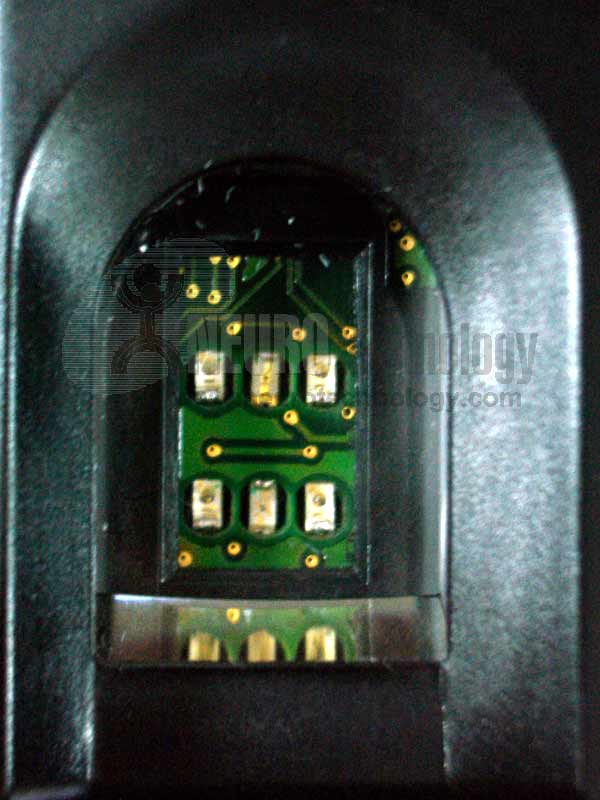

Close-up on sensor
Close-up on DERMALOG ZF1 fingerprint sensor
Click to zoom

DERMALOG ZF1 is an optical USB 2.0 fingerprint scanner that is certified by the FBI as FIPS-201 / PIV compliant and fulfills all requirements of BSI TR-PDÜ standards for plain fingerprint quality.

ZF1 scanner is able to perform live fingerprint detection and reject fake fingers or spoof fingerprints. Also it is able to scan dry and wet fingers.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name DERMALOG ZF1
Manufacturer DERMALOG Identification Systems GmbH
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Linux (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical
Device size 60 x 83 x 49 mm (2.4" x 3.3" x 1.9")
Operating temperature -10°C ~ +55°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
