DERMALOG F1

General view

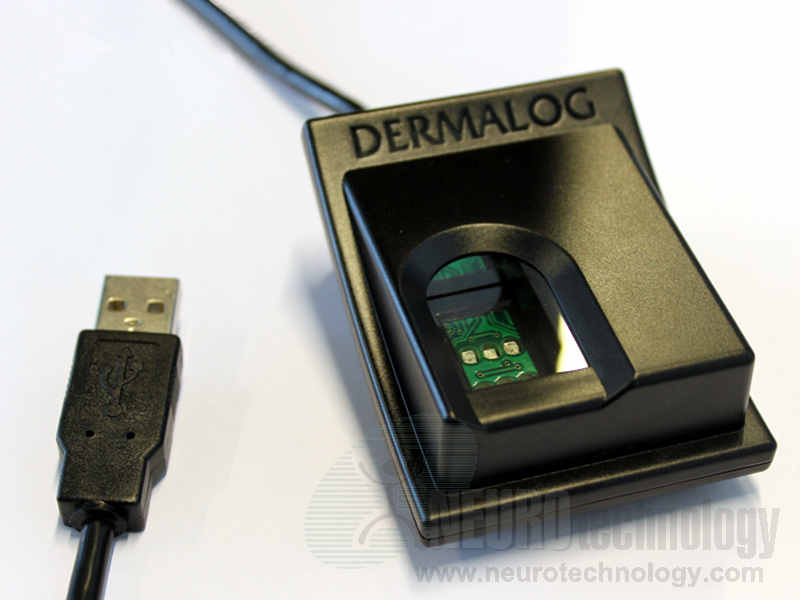

DERMALOG ZF1 fingerprint scanner, general view
Click to zoom

DERMALOG F1 is an optical FIPS-201 / PIV compliant plain (flat) fingerprint reader.

The manufacturer specifies, that the scanner uses infra-red illumination and is capable to scan dry, wet, blurred and other problematic fingers.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name Live Scanner F1
Manufacturer DERMALOG Identification Systems GmbH
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Linux (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 18 x 25 mm (0.7" x 1.0")
Sensor type Optical, CMOS
Sensor illumination Infra-red
Device size 31 x 53 x 68 mm (1.2" x 2.1" x 2.7")
Device weight (with USB cable) 122 grams (4.3 oz)
Operating temperature -10°C ~ +55°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other DERMALOG scanners

Neurotechnology SDKs include support module for these DERMALOG scanners:
