ASEDrive IIIe Combo Bio F2

General view

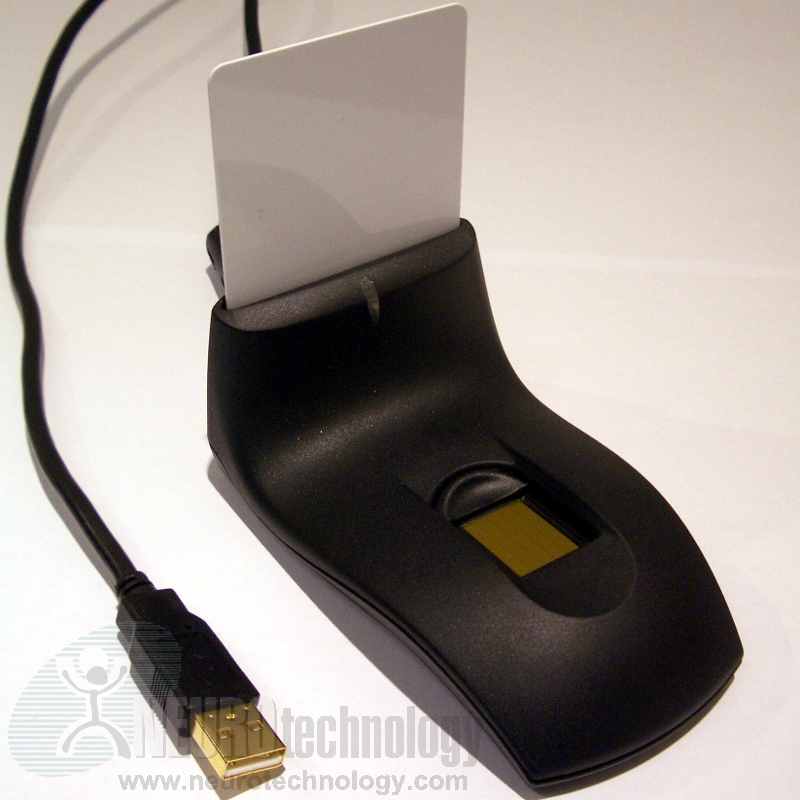

ASEDrive IIIe Combo Bio F2 fingerprint scanner, general view with smart card inserted
Click to zoom

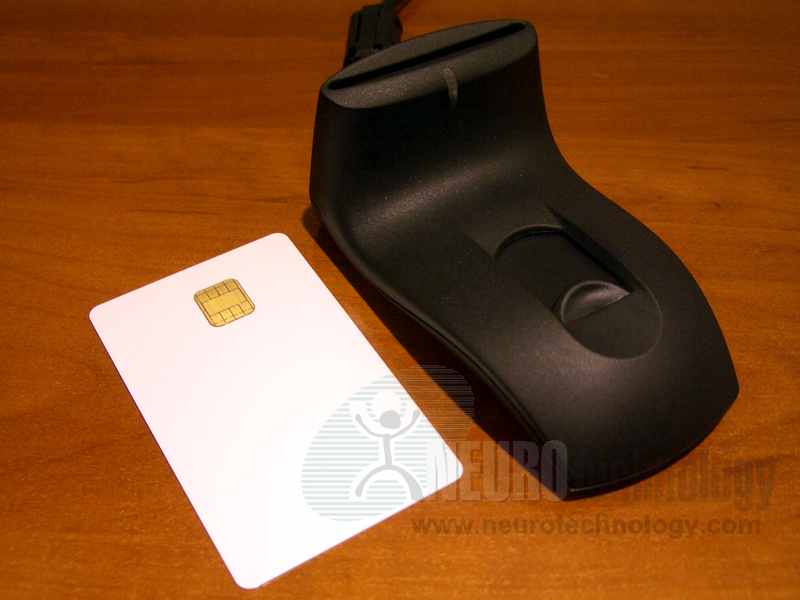

Smart card removed
and sensor lid closed
ASEDrive IIIe Combo Bio F2 fingerprint scanner, general view, smart card removed
Click to zoom


The ASEDrive IIIe Combo Bio F2 is a device with capacitive USB 2.0 fingerprint scanner and an ISO/IEC 7816 compliant smart card reader. The fingerprint reader part of the device includes the same sensor that is used in is the UPEK TouchChip TCRU2C fingerprint scanner.

The device allows to use fingerprint and smart card readers together for two-factor authentication, or separately. The smart card reader in the device can handle any ISO 7816 compatible smart card and can be used as stand-alone smart card reader.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

MegaMatcher On Card SDK can be used to integrate storage and verification of fingerprint templates on a smart card.

Specifications

General
Device name ASEDrive IIIe Combo Bio F2 Integrated Fingerprint Sensor Smart Card Reader
Manufacturer Athena Smartcard Solutions
Connection USB 2.0
Fingerprint reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 10 x 14 mm (0.4" x 0.6")
Fingerprint image size 208 x 288 pixels
Sensor type Capacitive
Illumination Infrared LEDs
Smart card reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Standard compliancy ISO/IEC 7816
Accepted card voltage 3V, 5V

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
