ACS AET65

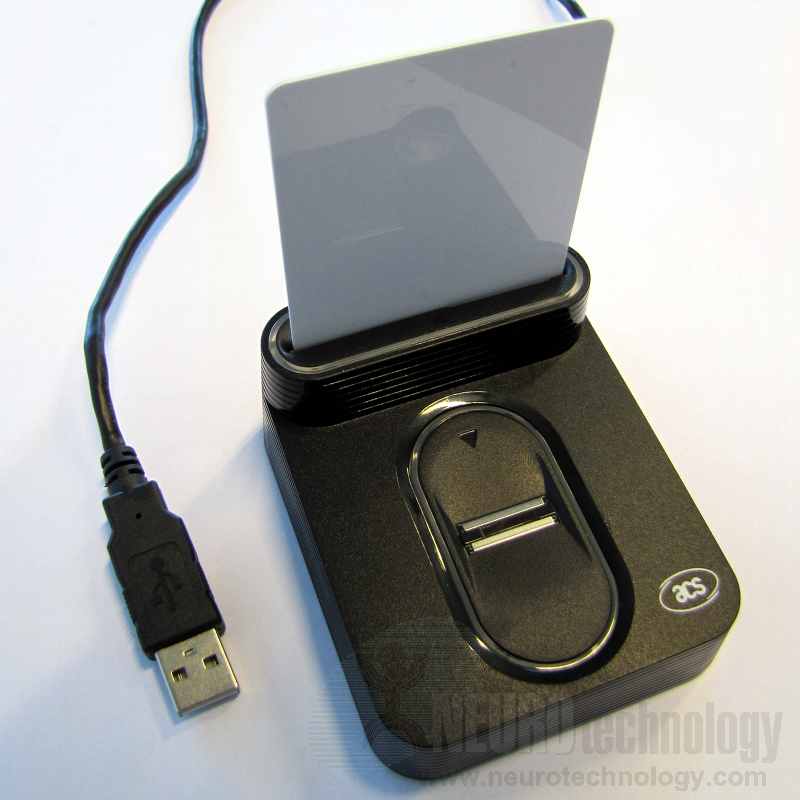

General view
ACS AET65 Smart Card Reader with Fingerprint Sensor, general view
Click to zoom

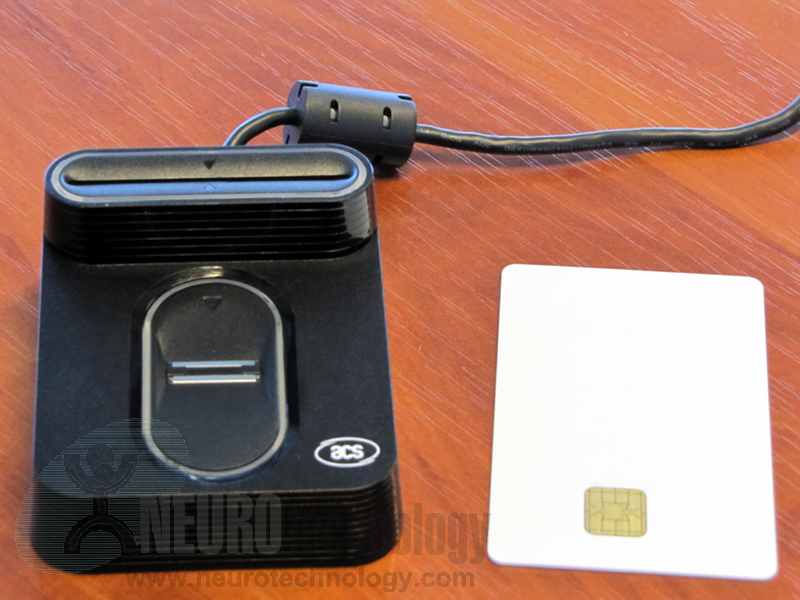

Smart card removed
ACS AET65 Smart Card Reader with Fingerprint Sensor, side-by-side with a smart card
Click to zoom

The AET65 from Advanced Card Systems combines fingerprint scanner with an ISO 7816 smart card reader.

A swipe fingerprint sensor from UPEK is used in the device. The same sensor is available in the Eikon fingerprint reader.

The ISO 7816 smart card reader supports Class A, B and C cards.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

The MegaMatcher On Card SDK can be used to integrate storage and verification of fingerprint templates on a smart card.

Specifications

General
Scanner Name AET65 Smart Card Reader with Fingerprint Sensor
Manufacturer Advanced Card Systems Ltd.
Connection USB 2.0
Device size 85 x 70 x 36 mm (3.3" x 2.8" x 1.4")
Device weight 194 grams (6.8 oz)
Operating temperature 0°C ~ +50°C
Fingerprint reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Mac OS X (x86 32-bit and 64-bit)
Sensor type Capacitive, CMOS
Resolution 508 ppi
Image capture area (Platen size) 9.6 x 0.2 mm (0.38" x 0.01")
Fingerprint image width 192 pixels
Smart card reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Standard compliancy ISO/IEC 7816
Accepted card voltage 1.8V, 3V, 5V

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other ACS scanners

Neurotechnology SDKs also support AET62 NFC Reader with Fingerprint Sensor from the same manufacturer.
