ACS AET62

General view

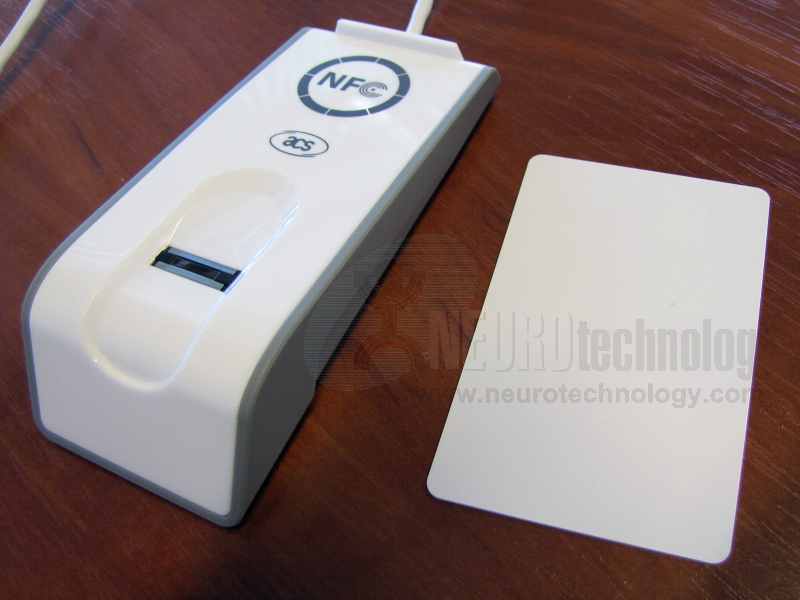

ACS AET62 NFC Reader with Fingerprint Sensor, general view with a contactless smart card
Click to zoom

The AET62 from Advanced Card Systems combines fingerprint scanner with contactless smart card reader.

A swipe fingerprint sensor from UPEK is used in the device. The same sensor is available in the Eikon fingerprint reader.

The contactless (RFID/NFC) smart card reader supports ISO 14443 (Type A and B), MIFARE, FeliCa, and ISO 18092 (NFC) tags.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

General
Scanner Name AET62 NFC Reader with Fingerprint Sensor
Manufacturer Advanced Card Systems Ltd.
Connection USB 2.0
Device size 122 x 54 x 28 mm (4.8" x 2.1" x 1.1")
Device weight 170 grams (6.0 oz)
Operating temperature 0°C ~ +50°C
Fingerprint reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit),
Linux (32-bit and 64-bit),
Mac OS X (x86 32-bit and 64-bit)
Sensor type Capacitive, CMOS
Resolution 508 ppi
Image capture area (Platen size) 9.6 x 0.2 mm (0.38" x 0.01")
Fingerprint image width 192 pixels
Smart card reader
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Standard compliancy ISO/IEC 18092 NFC, ISO14443 A and B, FeliCa, MIFARE
Supported protocols FeliCa, T=CL, NFCIP-1
Supported data transfer rates 106 kbps, 212 kbps, 424 kbps
Operating frequency 13.56 MHz
Operating distance up to 30 mm

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other ACS scanners

Neurotechnology SDKs also support AET65 Smart Card Reader with Fingerprint Sensor from the same manufacturer.
