BM5510

General view

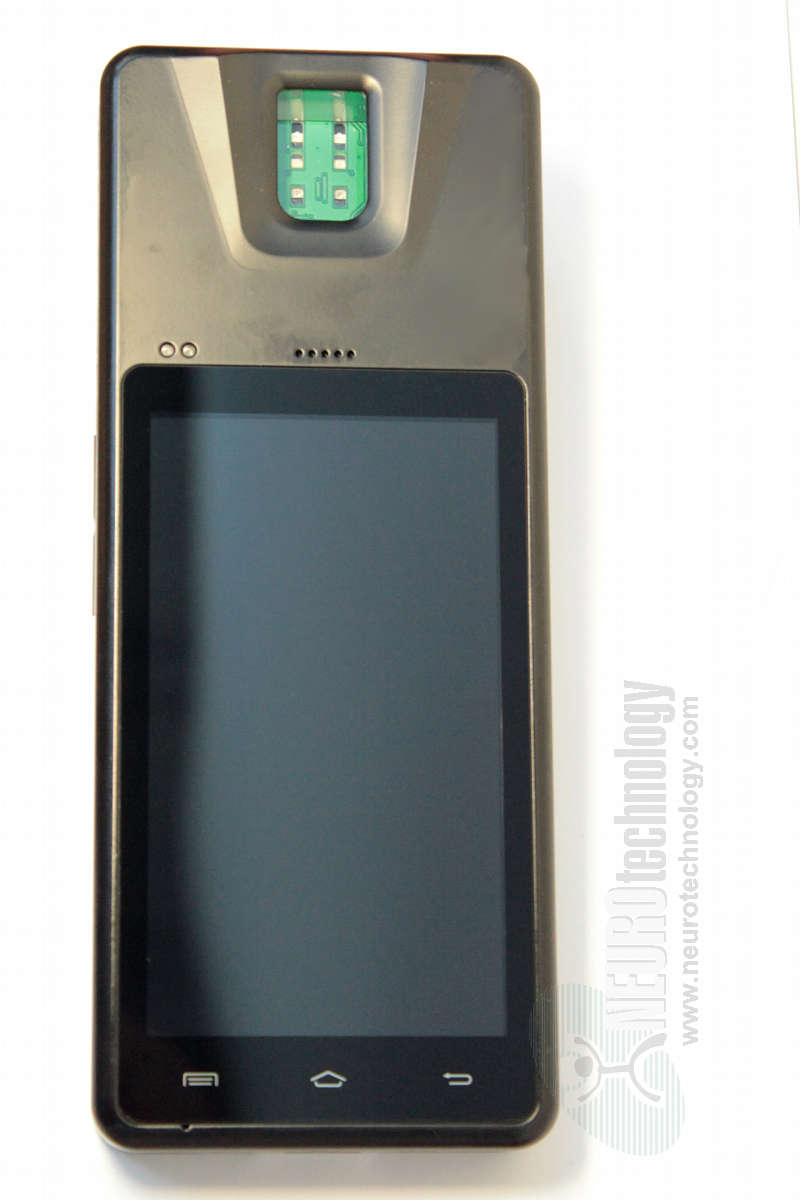

Aratek BM5510 device with multimodal biometrics, general view
Click to zoom

Aratek's BM5510 is a hand-held smart terminal for mobile fingerprints and faces capture.

The device is equipped with an optical fingerprint reader for scanning single fingers and 5 MP rear camera for face or barcode capture.

According to the manufacturer, the device has wireless communication support, which includes 2G/3G networks, Wi-Fi and Bluetooth, as well as GPS navigation. The manufacturer also specifies that the terminal has IP54 dustproof and waterproof casing.

BM5510 is provided with pre-installed Android OS and allows to run custom applications.

Neurotechnology SDKs allow to use the device for fingerprint and face capture:

Specifications

General
Device Name BM5510 Fingerprint Smart Terminal
Manufacturer Aratek
Connection Wi-Fi 802.11 b/g/n
Bluetooth 4.0
Cellular WCDMA 900/2100 MHz
Supported OS (*) Android 4.4 (pre-installed on device)
Device power Li-ion battery, 10000 mAh
Device memory 1 GB RAM
8 GB Flash
microSD (TF) card slot
Device size 201 x 82 x 46 mm (7.9" x 3.2" x 1.8")
Device weight 527 grams (1.2 lbs)
Fingerprint reader
Resolution 500 ppi
Image capture area (Platen size) 16 x 24 mm (0.6" x 0.9")
Fingerprint image size 320 x 480 pixels
Sensor type Optical
Face capture camera
Camera resolution 5 Megapixel

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Aratek devices

Neurotechnology SDKs also can be used with these Aratek devices:
