Trident

General view

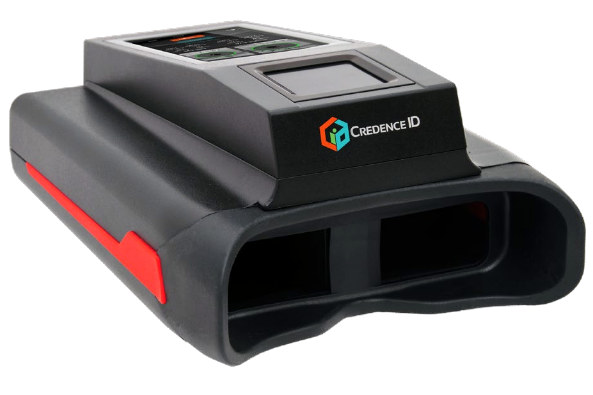

Credence ID Trident device with multimodal biometrics, general view
Click to zoom

Credence ID's Trident is a hand-held device, which is capable to capture single or dual fingerprints, face images and single or dual iris images.

According to the manufacturer, the device is based on a FIPS-201 / PIV and Appendix F Mobile ID FAP 45 certified certified fingerprint sensor.

The Trident device is provided with pre-installed Android OS and allows to run custom applications. The device features high capacity battery and supports multiple wireless connectivity options.

The manufacturer specifies that device casing has IP54 dust and water resistance. The fingerprint sensor and iris camera meet IP64 standard.

This device is no longer manufactured.

Support modules for this device are included in MegaMatcher 11.2 SDK, MegaMatcher On Card 11.2 SDK and VeriFinger 11.2 SDK.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 13.1 SDK, MegaMatcher On Card 13.1 SDK and VeriFinger 13.1 SDK.

Specifications

General
Device Name Trident
Manufacturer Credence ID
Connection Micro USB OTG
Wi-Fi 802.11 a/b/g/n
Bluetooth 4.0
Cellular UMTS/HSDPA/HSUPA 850/900/1900/2100 MHz
Supported OS (*) Android (pre-installed on device)
Device power Li-ion battery, 10,000 mAh
Device processor Snapdragon S4 Pro Quad-Core 1.7 GHz ARM-A9
Device memory 2 GB RAM
16 GB Flash
Device size 264 x 168 x 89 mm (10.4" x 6.6" x 3.5")
Device weight 1.25 kg (2.75 lbs)
Operating temperature 0°C ~ +50°C
Operating humidity 10% - 90% (non-condensing)
Fingerprint reader
Resolution 500 ppi
Image capture area (Platen size) 41 x 38 mm (1.6" x 1.5")
Sensor type LES (patented technology)
Face capture camera
Camera resolution 5 Megapixel
Iris capture camera
Iris image size 2 images, 640 x 480 pixels

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Credence ID devices

Neurotechnology SDKs also can be used with these Credence ID devices:
