Abilma UNITY

General view

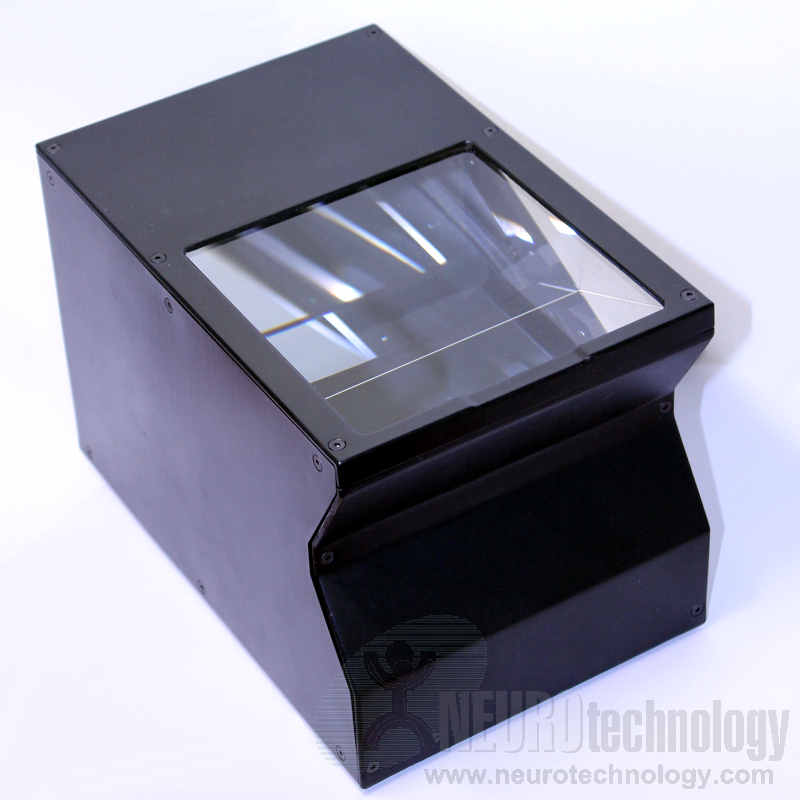

Abilma UNITY, general view
Click to zoom

Abilma UNITY is a multi-modal autonomous device designed to capturing fingerprints and palm prints. Scanners image quality complies to the FBI Image Quality Specification (IQS) as defined in the Appendix F of the EFTS.

Abilma UNITY includes on-board hardware with x86-64 processor, RAM and SSD storage. It supports 3G, Wi-Fi and Ethernet networking and can be used as a remote scanner.

The scanner is able to scan palm prints, four-finger slaps and single flat and rolled fingerprints. The manufacturer specifies, that the device may optionally include external wireless module with camera and microphone for face, voice, tattoo and other evidence data capture, as well as ePassport reader. Also specified rugged IP65 enclosure with optional all-metal structure.

Support modules for fingerprint and palm print capture with this device are included in:

  • MegaMatcher 10.0 SDK – includes components for template extraction from palm print images, and single or multiple fingerprint images;
  • MegaMatcher On Card 10.0 SDK – includes components only for single fingerprint template extraction;
  • VeriFinger 10.0 SDK – includes components for template extraction from single or multiple fingerprint images.

Specifications

Device name UNITY
Manufacturer Abilma GmbH
Connection USB 2.0, Wi-Fi 802.11n, VGA
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Android
Linux x86 (32-bit and 64-bit)
ARM Linux (32-bit and 64-bit)
Mac OS X
Resolution 500 ppi
Image capture area (Platen size) 127 x 130 mm (5.0" x 5.1")
Sensor type Optical
Device size 160 x 240 x 160 mm (6.3" x 9.5" x 6.3")
Device weight 4.6 kg (10.1 lbs)
Operating temperature +1°C ~ +40°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
