Testech Bio-i

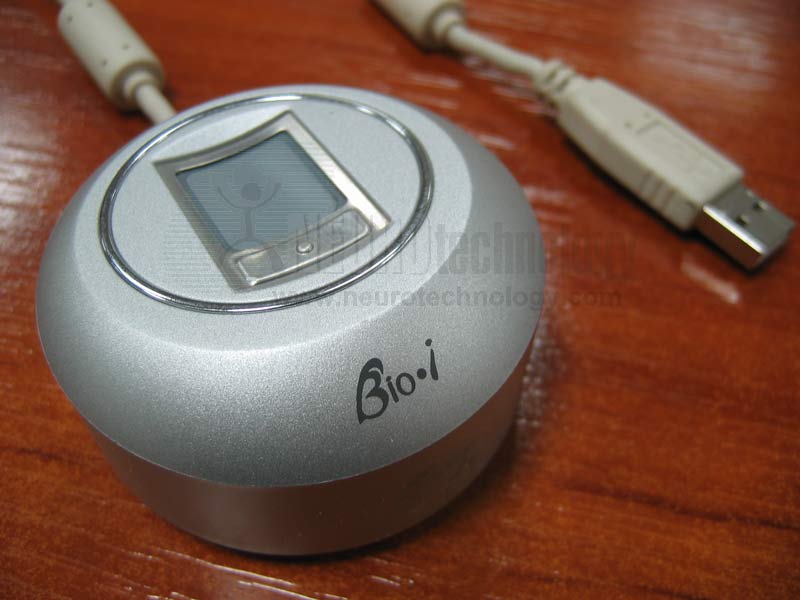

General view
Testech Bio-i CYTE fingerprint scanner, general view
Click to zoom

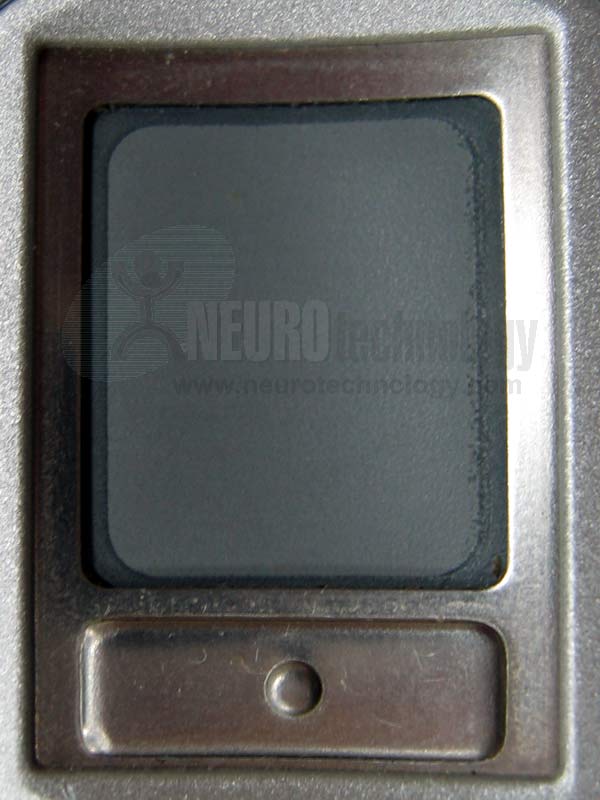

Close-up on sensor
Close-up on Testech Bio-i CYTE fingerprint sensor
Click to zoom

Bio-i CYTE from Testech is a hybrid optical/capacitive USB 2.0 fingerprint scanner.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK, VeriFinger 9.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name Bio-i CYTE
Manufacturer Testech, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Resolution 500 ppi
Image capture area (Platen size) 15 x 18 mm (0.6" x 0.7")
Sensor type Hybrid (optical and capacitive)
Device size 65 x 65 x 32 mm (2.6" x 2.6" x 1.3")
Device weight
(with cable)
110 grams (0.2 lbs)
Operating temperature -10°C ~ +50°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Neurotechnology Solution Partners use this scanner in

The Bio-i scanners are used in FS ID-Controler – an access & attendance control system created by Fingersec do Brasil Ltda. Fingersec do Brasil Ltda. is Neurotechnology's Solution Partner and distributor in Brazil.
