General view

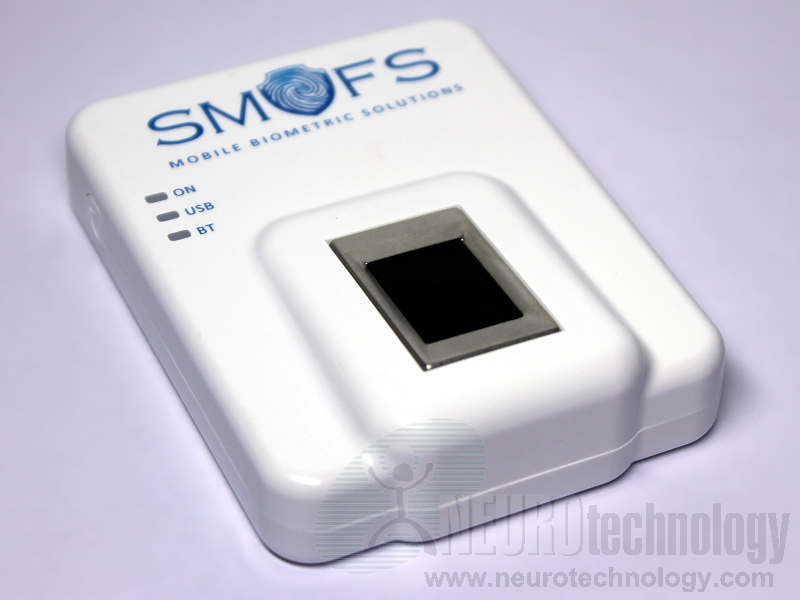

SMUFS BT bluetooth fingerprint reader, general view
Click to zoom

Back view

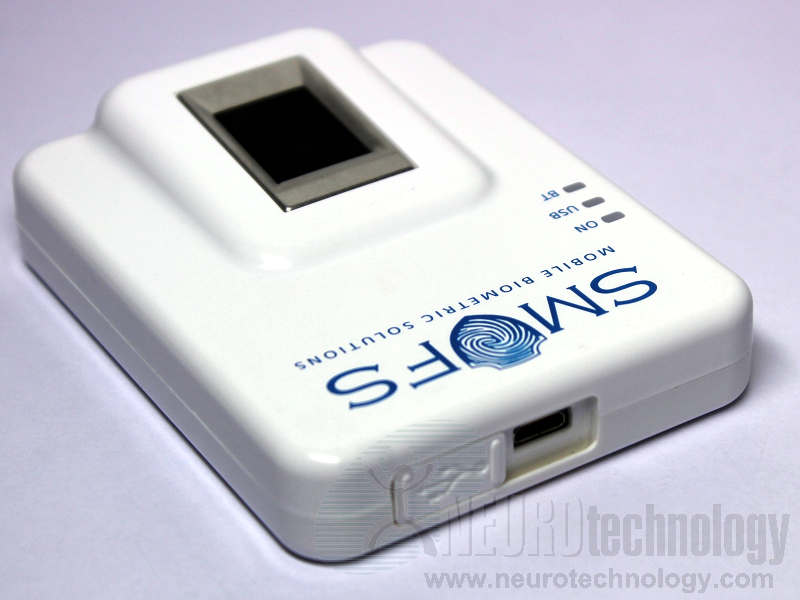

SMUFS BT bluetooth fingerprint reader, back view
Click to zoom

The SMUFS BT from SMUFS Biometric Solution is a portable wireless fingerprint reader with bluetooth connection. The device is battery powered and can be recharged via an USB port.

According to the manufacturer, the fingerprint reader is based on UPEK TCS1 capacitive flat fingerprint sensor which is certified by the FBI as FIPS 201/PIV compliant .

The device communicates the host using Bluetooth Class 2 transceiver.

Support modules for this scanner are included in MegaMatcher 10.0 SDK and VeriFinger 10.0 SDK.


Scanner Name SMUFS BT
Manufacturer SMUFS Biometric Solution
Connection Bluetooth Class 2
Supported OS (*) iOS, Android
Resolution 508 ppi
Image capture area (Platen size) 13 x 18 mm (0.5" x 0.7")
Fingerprint image size 256 x 360 pixels
Sensor type Capacitive
Device power Li-ion battery, 3.7V, 1400 mAh
Device size 85 x 66 x 22 mm (3.4" x 2.6" x 0.9")
Device weight 80 grams (2.8 oz)
Operating temperature 0°C ~ +50°C
Operating humidity 0% - 90% (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Where to order this device?

Buy SMUFS BT at Biometric Supply – a subsidiary of Neurotechnology.
