NeuBio MARS 02

General view

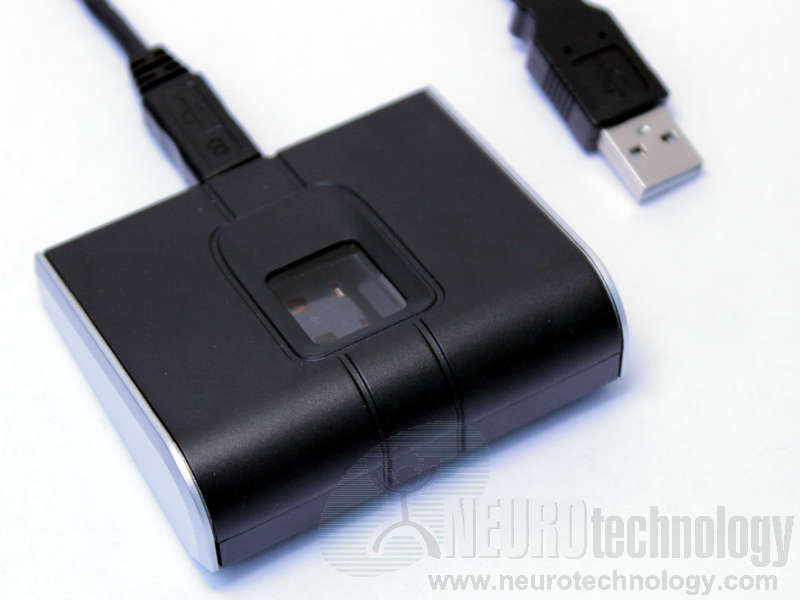

NeuBio MARS 02 USB fingerprint reader
Click to zoom

The MARS 02 is an optical fingerprint reader manufactured by NeuBio Technology Corp.

The manufacturer specifies that the fingerprint sensor features scratch-free, solid surface.

Support modules for these sensors are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

Sensor Name MARS 02
Manufacturer NeuBio Technology Corp.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 14 x 18 mm (0.6" x 0.7")
Fingerprint image size 252 x 330 pixels
Sensor type Optical
Device size 60 x 70 x 24 mm (2.4" x 2.8" x 0.9")
Device weight 105 grams (3.7 oz)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
