Mantra MAPRO-CX

General view

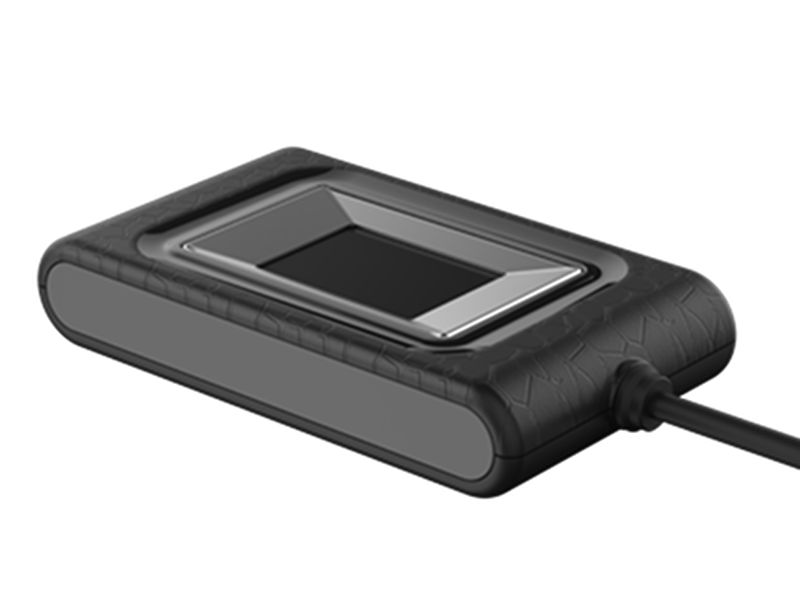

Mantra MAPRO-CX fingerprint reader, general view
Click to zoom

Mantra MAPRO-CX is an capacitive single fingerprint reader. The device is certified by the FBI as PIV-071006 and Mobile ID FAP 10 compliant.

The manufacturer specifies that the scanner features IP67 platen area.

Support modules for this scanner are included in:

Specifications

Scanner Name MAPRO-CX
Manufacturer Mantra Softech (India) Pvt. Ltd.
Connection USB
Supported OS (*) Microsoft Windows
Resolution 500 ppi
Image capture area (Platen size) 13 x 18 mm (0.5" x 0.7")
Fingerprint image size 256 x 360 pixels
Sensor type Capacitive
Device size 58 x 33 x 11 mm (2.3" x 1.3" x 0.4")
Device weight 40 grams (1.4 oz)
Operating temperature 0°C ~ +50°C (+32°F ~ +122°F)
Operating humidity 0-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Mantra scanners

Neurotechnology SDKs also include support modules for these Mantra scanners:

  • MARC10 – PIV and FAP10 certified single finger scanner with capacitive sensor and IP54 casing.
  • MELO31 – PIV-certified single finger scanner with optical sensor and IP65 casing.
  • MFS500 – PIV and FAP10 certified single finger scanner with optical sensor and IP54 casing.
  • MORPHS – FAP60 certified ten finger scanner with optical sensor and IP65 casing.
