Intech SOP1

General view

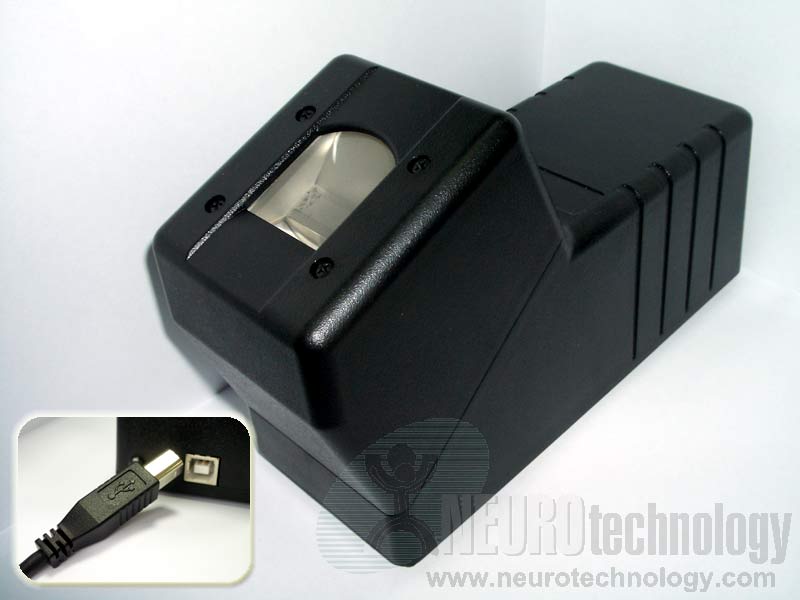

Intech SOP1 fingerprint scanner, general view
Click to zoom

SOP1 from Intech is an optical USB 2.0 fingerprint scanner. The scanner has a large sensor and is suitable for large-scale applications.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name SOP1
Manufacturer Intech
Connection USB 2.0
Supported OS (*) Microsoft Windows (32bit)
Resolution 500 ppi
Image capture area (Platen size) 25 x 25 mm (1" x 1")
Fingerprint image size 500 x 500 pixels
Sensor type Optical
Device size 113 x 71 x 185 mm (4.4" x 2.8" x 7.3")
Device weight 620 grams (1.4 lbs.)
Operating temperature 5°C ~ +40°C
Operating humidity 20-80 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
