Green Bit DactyID20

General view

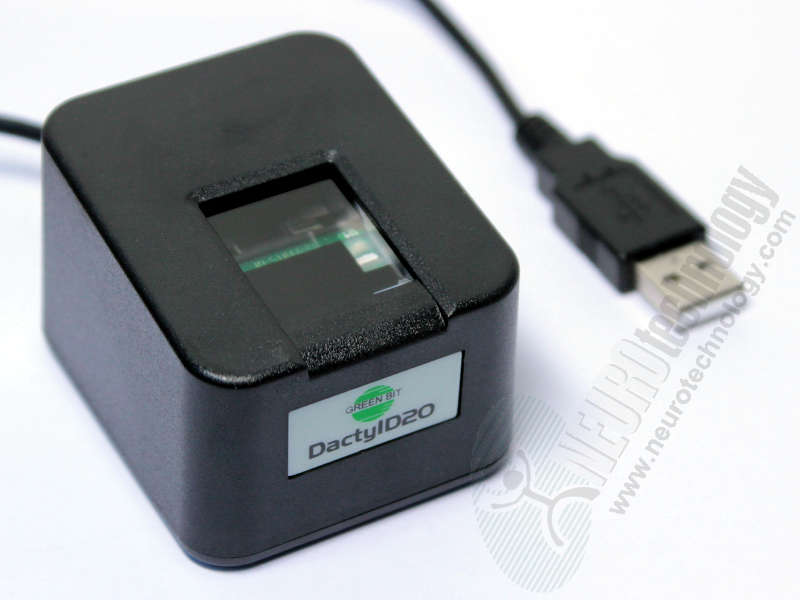

Green Bit DactyID20 fingerprint reader, general view
Click to zoom

DactyScanID20 from Green Bit is a FAP ID 20 PIV-certified single fingerprint reader.

The manufacturer specifies that the scanner features hardware-based fake finger detection. Also specified that the device has IP54 rating

An OEM module is also available from the manufacturer.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK and VeriFinger 10.0 SDK.

Specifications

Scanner Name DactyID20
Manufacturer Green Bit S.p.A.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Linux (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 18 x 20 mm (0.7" x 0.8")
Sensor type Optical
Device size 50 x 68 x 43 mm (2.0" x 2.7" x 1.7")
Device weight 175 grams (6.2 oz.)
Operating temperature -20°C ~ +50°C
Operating humidity 10% ~ 90% (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
