DigitalPersona U.are.U 5300 Reader and Module

U.are.U 5300 Reader

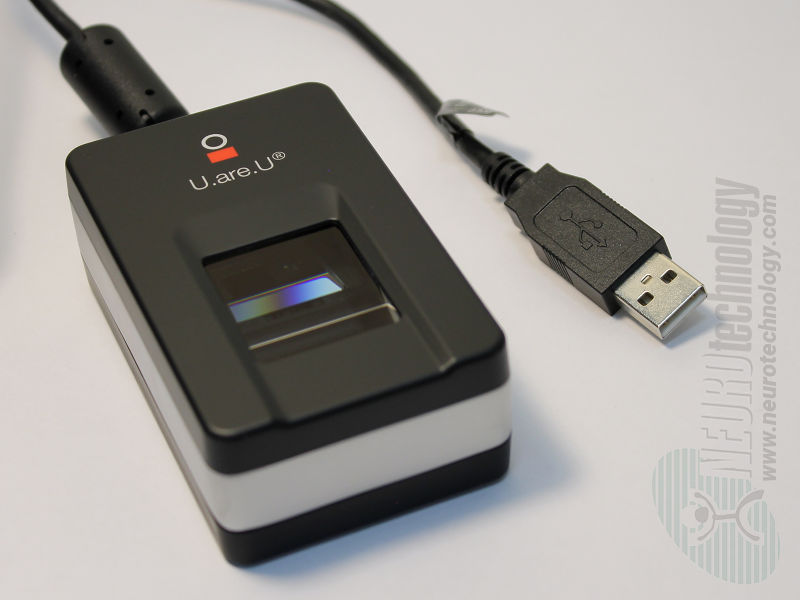

DigitalPersona U.are.U 5300 fingerprint reader, general view
Click to zoom


U.are.U 5300 Module

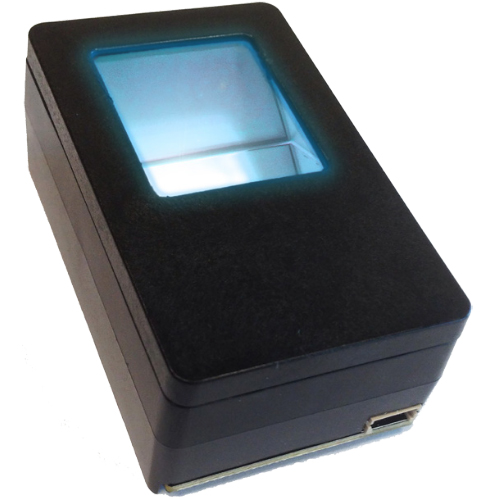

DigitalPersona U.are.U 5300 fingerprint module, general view
Click to zoom

The U.are.U 5300 is a FIPS-201/PIV certified fingerprint reader from DigitalPersona. The scanner is also certified as compliant to FBI Mobile FAP 30 standard. It is also available as a fingerprint scanner module for OEM integration.

The manufacturer specifies that scanner's fingerprint sensor has IP64-rated seal between top case and glass surface. The scanner is able to reject latent or spoof fingerprints.

Support modules for this scanner are included in MegaMatcher 11.2 SDK, MegaMatcher On Card 11.2 SDK and VeriFinger 11.2 SDK.

Specifications

  U.are.U 5300 Reader U.are.U 5300 Module
Manufacturer HID Global Corporation
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Linux (32-bit and 64-bit)
Android
Resolution 500 ppi
Image capture area 20 x 25 mm (0.8" x 1.0")
Sensor type Optical
Illumination Blue LEDs
Size 86 x 53 x 31 mm (3.4" x 2.1" x 1.2") 67 x 41 x 27 mm (2.6" x 1.6" x 1.1")
Operating temperature -10°C ~ +50°C
(14°F ~ 122°F)
Operating humidity 0-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other DigitalPersona scanners

Neurotechnology SDKs also include support modules for these DigitalPersona scanners:
