Digent FD1000

General view
Digent FD1000 fingerprint scanner
Click to zoom

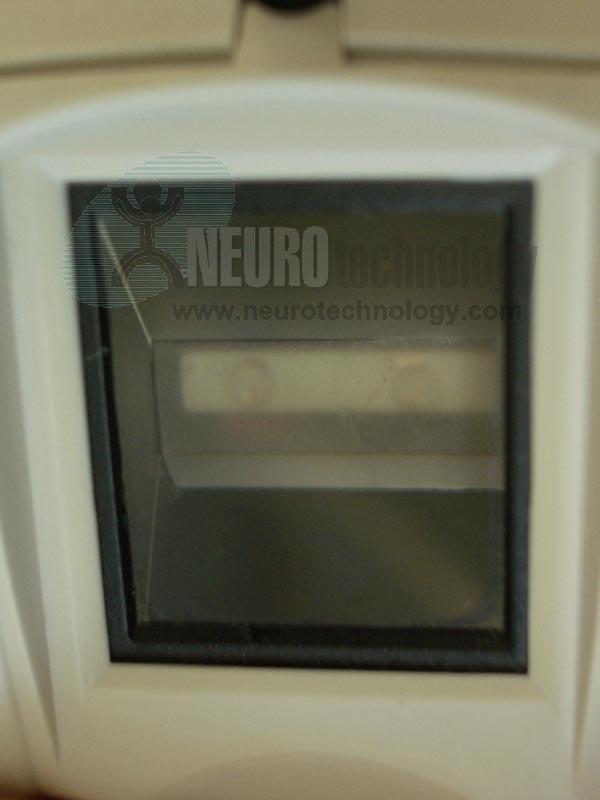

Close-up on sensor
Close-up on Digent FD1000 fingerprint sensor
Click to zoom

Digent FD1000 is an optical USB 1.1 fingerprint scanner. An optical mouse with the same fingerprint sensor is also available from scanner's manufacturer.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name FD1000 optical fingerprint scanning device
Manufacturer Digent Co. Ltd.
Connection USB 1.1
Supported OS (*) Microsoft Windows (32bit)
Resolution 500 ppi
Image capture area (Platen size) 16 x 19 mm (0.6" x 0.7")
Fingerprint image size 280 x 320 pixels
Sensor type Optical
Device size 55 x 84 x 42 mm (2.2" x 3.3" x 1.7")
Device weight 100 grams (0.2 lbs.)
Operating temperature 0°C ~ +40°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
