BioLink U-Match MatchBook v.3.5

General view

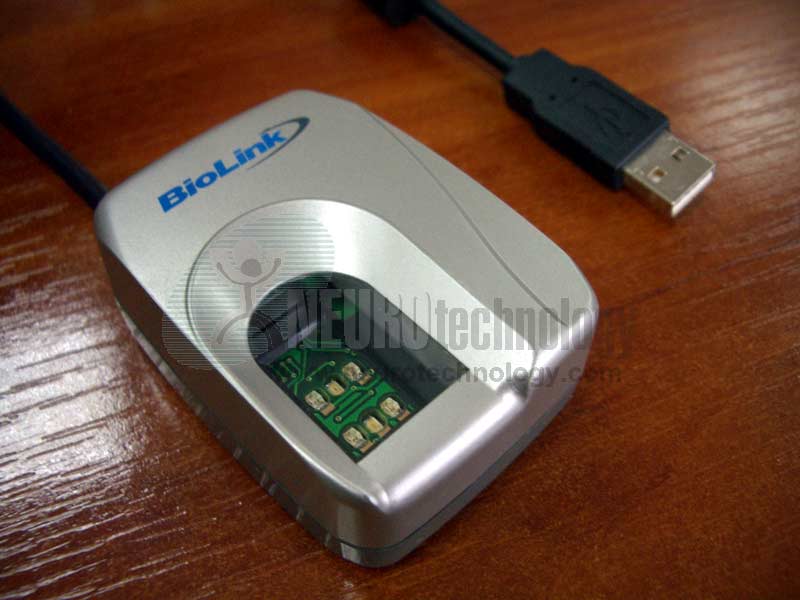

BioLink U-Match MatchBook v.3.5 fingerprint scanner, general view
Click to zoom


Close-up on sensor

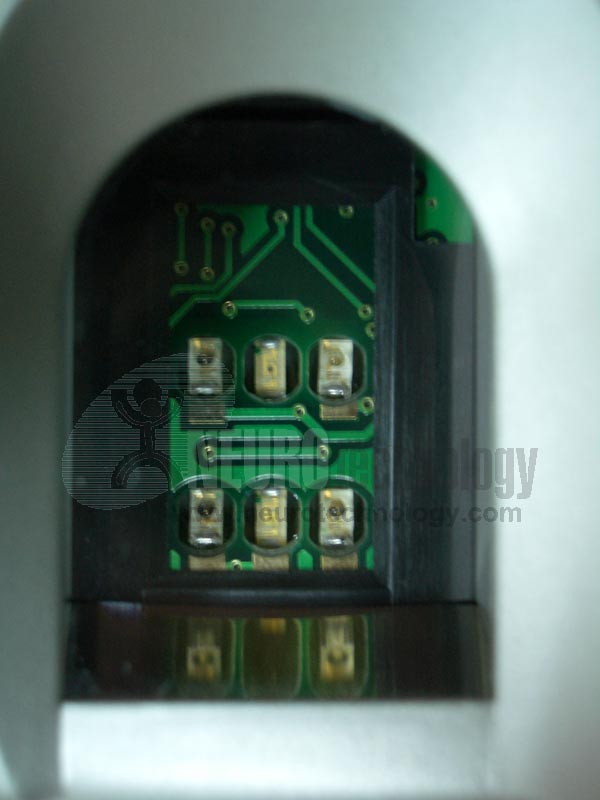

Close-up on BioLink U-Match MatchBook v.3.5 fingerprint sensor
Click to zoom

U-Match MatchBook v.3.5 from BioLink Solutions is an optical USB 2.0 fingerprint scanner.

Support modules for this scanner are included in MegaMatcher 10.0 SDK, MegaMatcher On Card 10.0 SDK, VeriFinger 10.0 SDK and Free Fingerprint Verification SDK.

Specifications

Scanner Name BioLink U-Match MatchBook v.3.5
Manufacturer BioLink Solutions
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit), Linux (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 18 x 26 mm (0.7" x 1.0")
Sensor type Optical
Device size 45 x 63 x 26 mm (1.8" x 2.5" x 1.0")
Device weight 120 grams (0.3 lbs)
Operating temperature -10°C ~ +55°C
Operating humidity 30% ~ 90%

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
