ARH AFS 510

General view

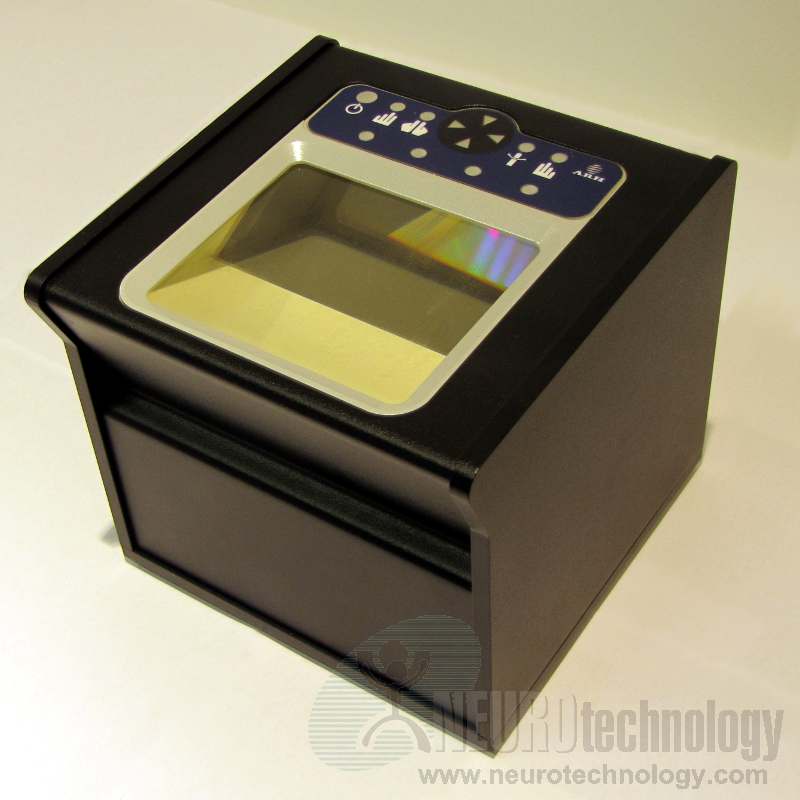

AFS 510 fingerprint scanner, general view
Click to zoom


Sensor close-up

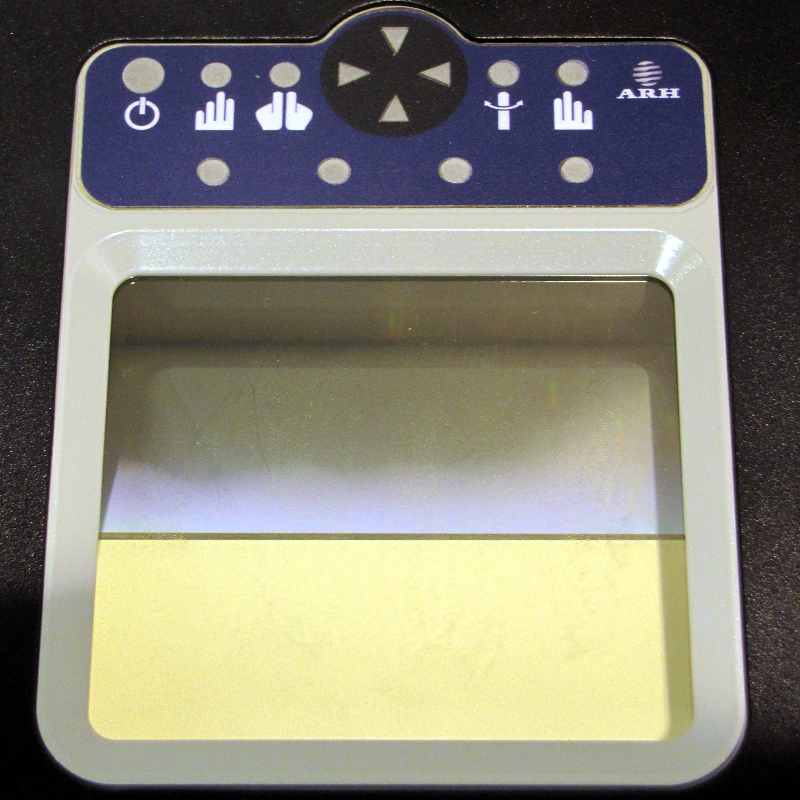

AFS 510 fingerprint sensor close-up
Click to zoom

AFS 510 from Adaptive Recognition Hungary is an optical USB 2.0 fingerprint scanner intended for professional usage. The scanner is able to perform quick capture of all 10 fingerprints using 4+4+2 method. Also the scanner can capture single rolled or flat fingerprints.

The AFS 510 produces fingerprint images that are compliant with FBI IAFIS IQS Appendix 7 requirements and ANSI/NIST-ITL-1-2007, ANSI/NIST-ITL-1-2000 and ISO/IEC 19794-4 standards. Scanner manufacturer specifies, that the device is able to perform automatic image quality check and choose the best quality image for sending to the host PC.

The device comes with an external power supply.

Support modules for this scanner are included in MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

Scanner Name AFS 510 Live Scanner
Manufacturer ARH, Inc. (Adaptive Recognition Hungary)
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit & 64-bit)
Linux (32-bit & 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 104 x 77 mm (4.0" x 3.0")
Sensor type Optical
Device size 155 x 157 x 120 mm (6.1" x 6.2" x 4.7")
Device weight 2.4 kg (5.3 lbs)
Operating temperature 5°C ~ +45°C
Operating humidity 0% - 95% (non-condencing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
