3M Cogent CSD 330

General view

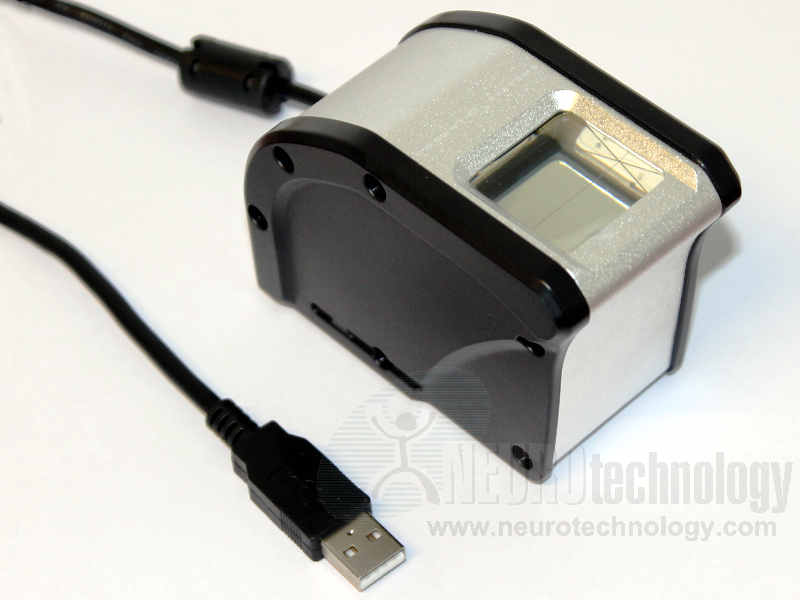

3M Cogent CSD 330 fingerprint scanner, general view
Click to zoom

The CSD 330 from 3M Cogent is FIPS 201 PIV certified optical fingerprint scanner. The scanner has 1" x 1" platen that allows to capture quality flat fingerprints for both civil and forensic applications.

The manufacturer specifies that the device is housed in a durable compact casing.

Support modules for this scanner are included in:


Scanner Name CSD 330
Manufacturer 3M Cogent, Inc.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 25 x 25 mm (1.0" x 1.0")
Fingerprint image size 500 x 500 pixels
Sensor type Optical
Device size 95 x 50 x 69 mm (3.8" x 2.0" x 2.7")
Device weight 290 grams (10.2 oz)
Operating temperature 0°C ~ +55°C
Operating humidity 10-90 % (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
