Technology Awards

FpVTE 2012

FpVTE 2012 is the latest and the largest independent evaluation of fingerprint identification technologies conducted by the National Institute of Standards and Technology (NIST). The evaluation used operational fingerprints datasets which contained several million subjects and tested one-to-many identification scenarios with finger combinations varying from single finger to ten fingers.

These Neurotechnology comments on the NIST report take into account algorithms' accuracy, search time and enrollment time. NIST has also tested RAM usage; however, RAM cost is negligible in large-scale projects with nowadays servers architecture.

The FpVTE 2012 submisions were divided into three classes:

  • Class A – single flat fingerprints;
  • Class B – flat tenprints (four-finger slaps and dual thumbs);
  • Class C – 14 print cards (two four-finger slaps, dual flat thumbs and ten rolled fingerprints).

Previously, Neurotechnology participated in FpVTE 2003.

Class A

The Class A image dataset consisted of live-scan single finger captures of the left and right index fingers.

Neurotechnology's submission E1 represents MegaMatcher SDK, used for fingerprint processing and MegaMatcher Accelerator (tuned for maximum accuracy) used for template matching. Submission E2 corresponded with an algorithm prototype which is not currently used in any Neurotechnology products.

The results show that a system built using MegaMatcher SDK and MegaMatcher Accelerator may achieve one of the fastest matching speeds with good accuracy at the same time.

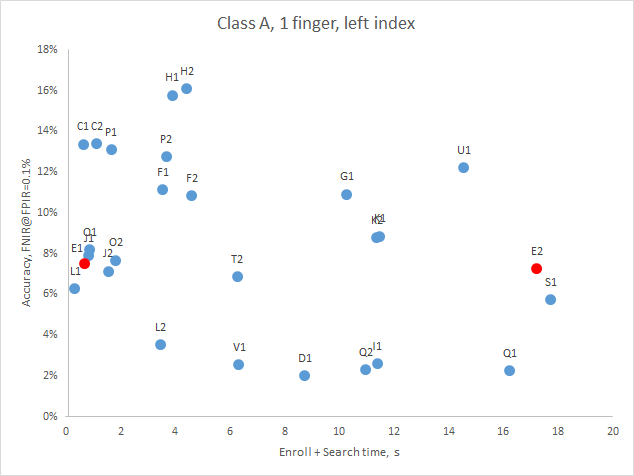

Neurotechnology algorithms performance in FpVTE 2012 Class A (left index finger)
Neurotechnology submissions E1 and E2 are denoted with red color.

Class B

The Class B image dataset consisted of live-scan identification flat fingerprints, which captured left and right four-finger slaps and both thumbs simultaneously.

Neurotechnology's submissions are E1 and E2. Six more submissions from vendors F, H, and M are not visualized because their accuracy was significantly worse than others and out of the image graph scope.

Fingerprints were processed with MegaMatcher SDK and the matching was performed with MegaMatcher Accelerator. The two different entries, E1 and E2, correspond to different matching speed settings.

The results show how a system built using MegaMatcher SDK and MegaMatcher Accelerator may be tuned to achieve faster speeds in all the tests while still maintaining better accuracy compared to the second fastest algorithm. The same system may also be tuned for accuracy resulting as the 4th most accurate algorithm among all participating companies.

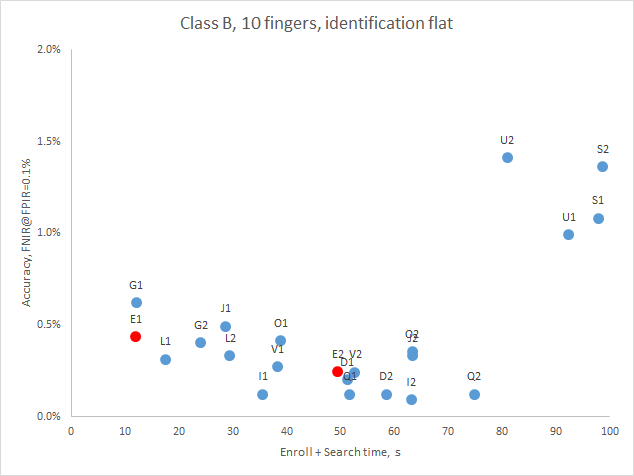

Neurotechnology algorithms performance in FpVTE 2012 Class B (10 flat fingerprints)
Neurotechnology submissions E1 and E2 are denoted with red color.

Class C

The Class C image dataset consisted of a mix of live-scan and rescanned ink paper scans as a traditional 14 print card / record. This class was the most difficult for several reasons. 5,000,000 tenprints were enrolled into the gallery and identification results were expected to be reported in 90 seconds, as in Class B. Images are more difficult to process than plain fingerprints from scanners and also it could contain rolled fingerprints which usually have triple the number of minutiae compared to plain fingerprints.

Neurotechnology's submissions are E1 and E2. Fingerprints were processed with MegaMatcher SDK and the matching was performed with MegaMatcher Accelerator. The two different entries, E1 and E2, correspond to different matching speed settings.

The results show how a system built using MegaMatcher SDK and MegaMatcher Accelerator may achieve faster speeds than others, being four times more accurate than the second fastest algorithm.

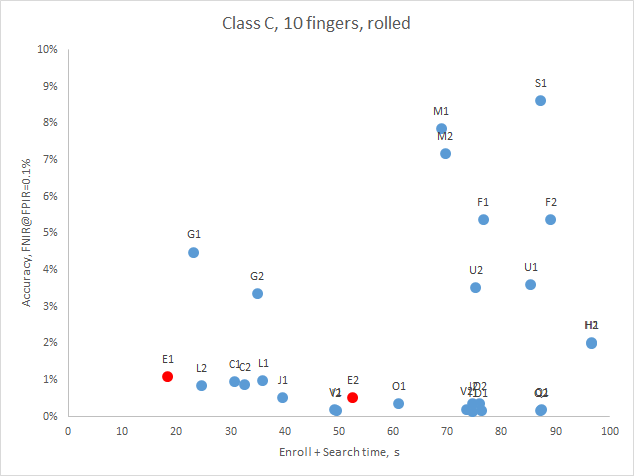

Neurotechnology algorithms performance in FpVTE 2012 Class C (10 rolled and 10 flat fingerprints)
Neurotechnology submissions E1 and E2 are denoted with red color.

See also the full FpVTE 2012 report.

* Results shown from the NIST FpVTE 2012 do not constitute an endorsement of any particular system by the government.
