BrainAccess Development Kit

Compact solution for brain-computer interface (BCI) systems based on dry electroencephalography (EEG)

BrainAccess is a kit intended for researchers and developers who need an easy-to-use and reasonably-priced EEG solution for BCI applications.

Available as BrainAccess Standard Kit and BrainAccess Extended Kit which include electroencephalographs, headwear with a set of dry-contact electrodes and software for EEG signal acquisition and processing. The kits also include ready-to-use algorithms which can be used for BCI applications.

Electroencephalographs

These models of electroencephalographs are available:

Both BrainAccess MINI and BrainAccess MODULAR are multi-channel electroencephalographs with a common reference channel. They also feature a driven bias electrode connection for improved noise reduction capabilities.

BrainAccess MINI

BrainAccess MINI is a truly portable device, which is ideal for an in-field EEG applications and research. It has long battery life, weighs less than 100 grams and can be directly mounted on BrainAccess CAP.

See the user manual (PDF).

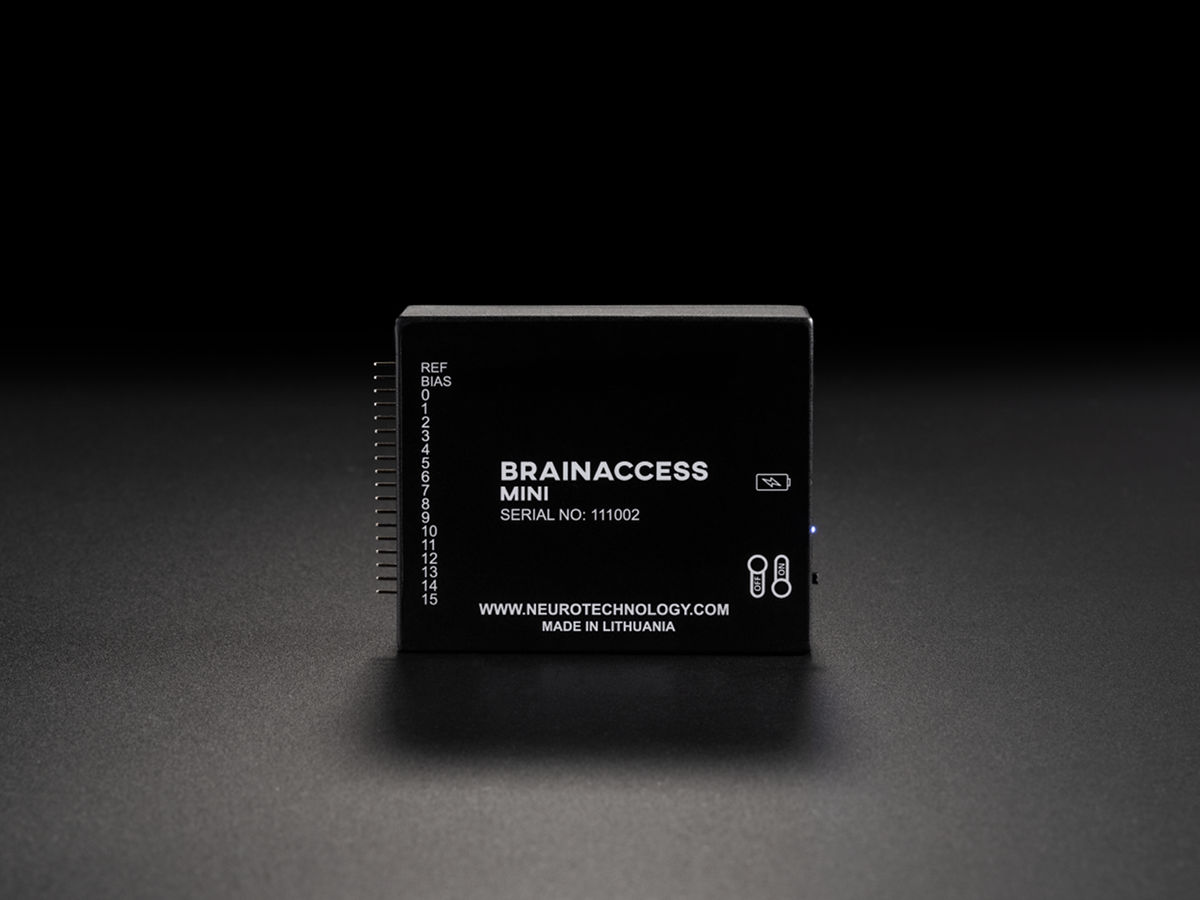

BrainAccess MINI General view
BrainAccess MINI photo
Attached to BrainAccess CAP
BrainAccess MINI photo
BrainAccess MINI General view
BrainAccess MINI photo thumbnail
BrainAccess MINI View on connection pins
BrainAccess MINI photo thumbnail
Attached to BrainAccess CAP
BrainAccess MINI photo thumbnail

Specifications for BrainAccess MINI:

  • EEG input:
    • Number of channels: 16 + common reference channel;
    • Sampling frequency: 125 Hz / 250 Hz;
    • Input voltage range (with respect to ref electrode): 375 mV;
    • Input resolution: 24 bit;
    • Input connector: standard IDC male pins (0.1"/2.54mm).
  • Accelerometer:
    • Axis number: 3;
    • Sampling frequency: same as for EEG channels;
    • Range: ±2g;
    • Resolution: 10 bit.
  • Wireless connectivity (Wi-Fi 802.11g):
    • Power: 10 dBm
    • Range: up to 10 m (33 ft) using the provided Wi-Fi dongle
  • Battery (Li-Po, 2100 mAh):
    • Operating time: 11 hours (continuous use, all channels turned on);
    • Charging time: 3.3 hours;
    • Charger input: Micro USB socket, 5 V, 800 mA minimum (charger not included).
  • Size: 76 x 63 x 22 mm (3.0" x 2.5" x 0.9").
  • Weight: 97 g (3.4 oz).

One BrainAccess MINI unit is included with the BrainAccess Standard Kit. More BrainAccess MINI units can be purchased any time by BrainAccess Standard Kit customers.

BrainAccess MODULAR

BrainAccess MODULAR is a multi-channel electroencephalograph featuring modular architecture. The total number of acquisition channels can be increased up to 128 with 32-channel expansion boards. The high number of channels enables high density coverage of brain cerebral cortex, yet its compact size, wireless connectivity and battery power allow portable in-field use.

See the user manual (PDF).

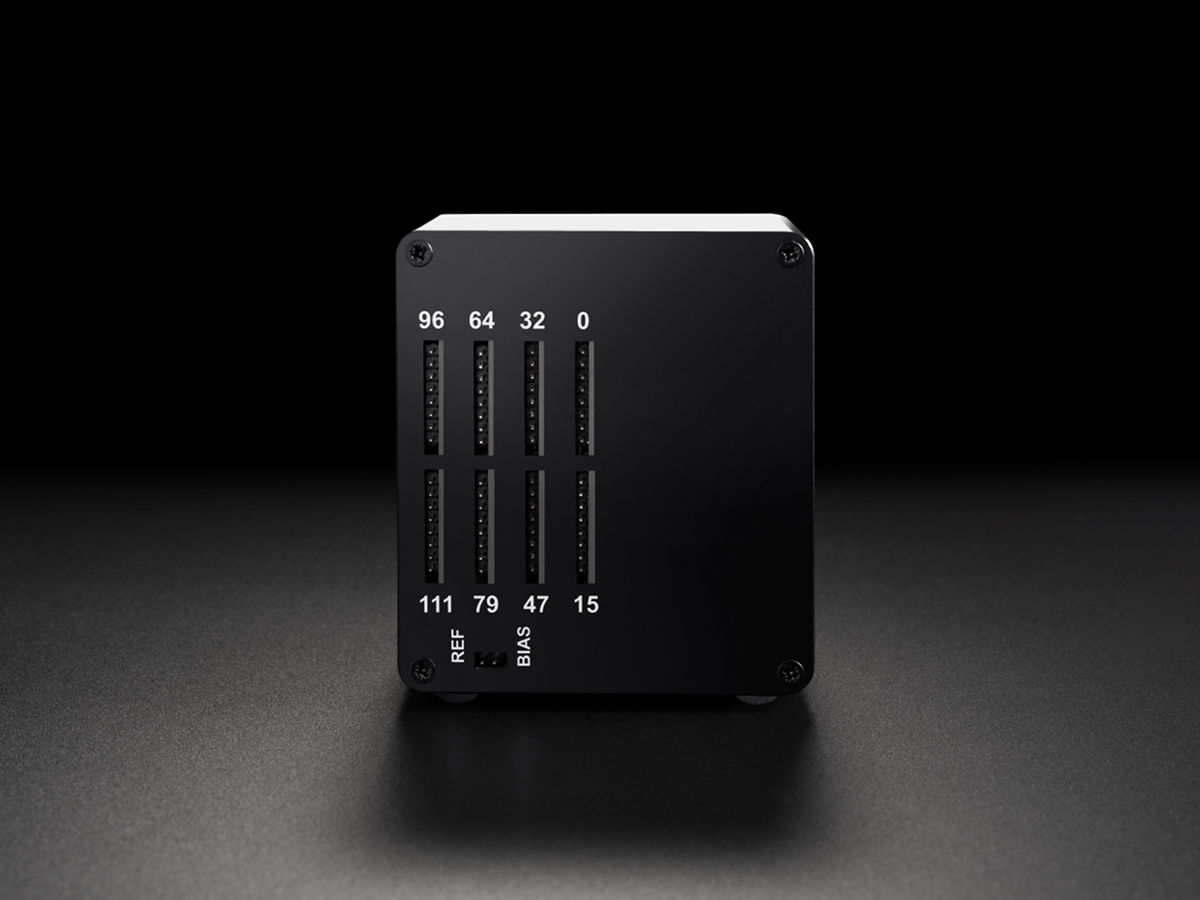

BrainAccess MODULAR Front view
BrainAccess MODULAR photo

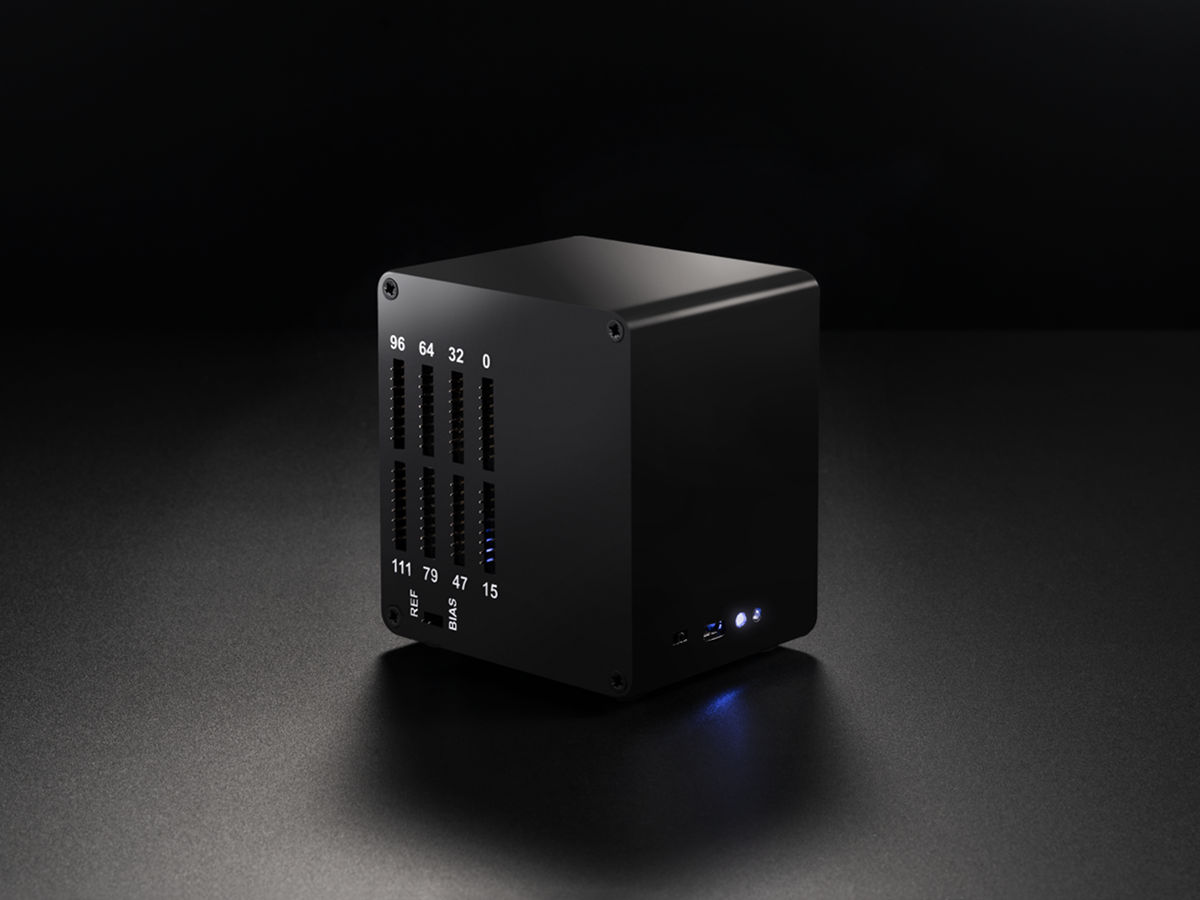

BrainAccess MODULAR Back view
BrainAccess MODULAR photo
Attached to BrainAccess CAP
BrainAccess MODULAR photo
BrainAccess MODULAR Front view
BrainAccess MODULAR photo thumbnail
BrainAccess MODULAR Back view
BrainAccess MODULAR photo thumbnail
Attached to BrainAccess CAP
BrainAccess MODULAR photo thumbnail

Specifications for BrainAccess MODULAR:

  • EEG input:
    • Number of channels: 32/64/94/128 + common reference channel;
    • Sampling frequency: 125 Hz / 250 Hz;
    • Input voltage range (with respect to ref electrode): 375 mV;
    • Input resolution: 24 bit;
    • Input connector: standard IDC male pins (0.1"/2.54mm).
  • Accelerometer:
    • Axis number: 3;
    • Sampling frequency: same as for EEG channels;
    • Range: ±2g;
    • Resolution: 10 bit.
  • Wireless connectivity (Wi-Fi 802.11g):
    • Power: 10 dBm
    • Range: up to 10 m (33 ft) using the provided Wi-Fi dongle
  • Battery (Li-Po, 3500 mAh):
    • Operating time: 4.5 hours (continuous use, all channels turned on);
    • Charging time: 4.5 hours;
    • Charger input: Micro USB socket, 5 V, 800 mA minimum (charger not included).
  • Size: 70 x 84 x 95 mm (2.8" x 3.3" x 3.7").
  • Weight: 265 g (9.3 oz) – 128 acquisition channels.

One BrainAccess MODULAR unit with 32 acquisition channels is included with the BrainAccess Extended Kit. More BrainAccess MODULAR units with 32, 64, 96 and 128 acquisition channels, as well as channel expansion boards, can be purchased any time by BrainAccess Extended Kit customers.
