Startek FM200

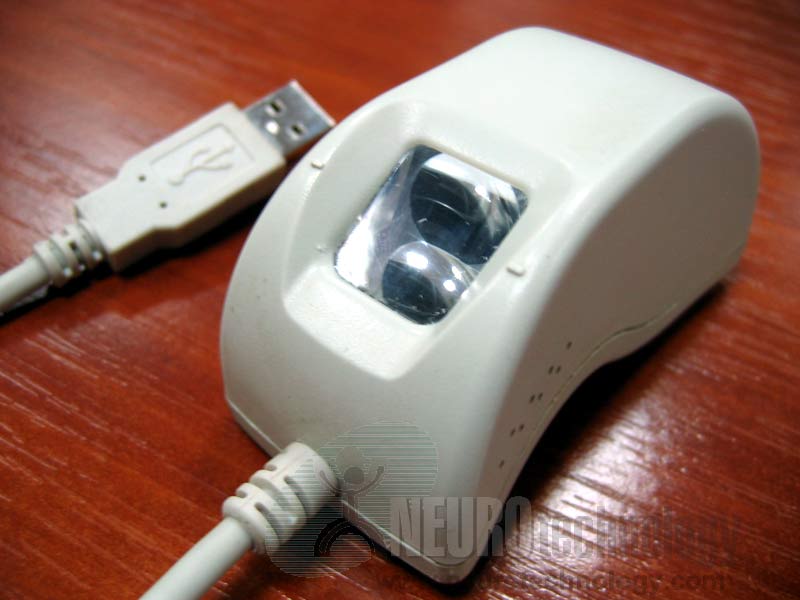

General view
Startek FM200 fingerprint scanner, general view
Click to zoom

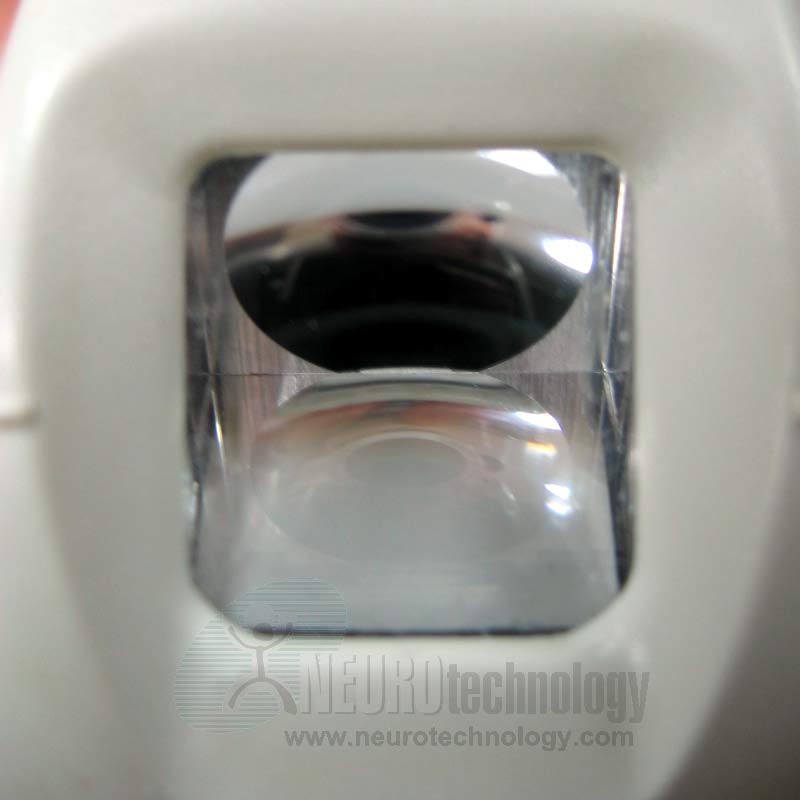

Close-up on sensor
Close-up on Startek FM200 fingerprint sensor
Click to zoom

Startek FM200 is an optical USB scanner. The scanner can be used in PC and embedded applications.

Support modules for this scanner are included in Free Fingerprint Verification SDK.

Specifications

Scanner Name FM200 Fingerprint Reader
Manufacturer STARTEK Engineering Inc.
Connection USB
Supported OS (*) Microsoft Windows (32-bit), Linux (32-bit)
Resolution 500 ppi
Image capture area (Platen size) 13 x 13 mm (0.5" x 0.5")
Fingerprint image size 500 x 500 pixels
Sensor type Optical, CMOS
Device size 80 x 41 x 40 mm (3.1" x 1.6" x 1.6")
Device weight 100 grams (0.2 lbs)
Operating temperature -20°C ~ +45°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other Startek scanners

Neurotechnology SDKs also include support modules for these Startek scanners:
