Green Bit DactyScan26

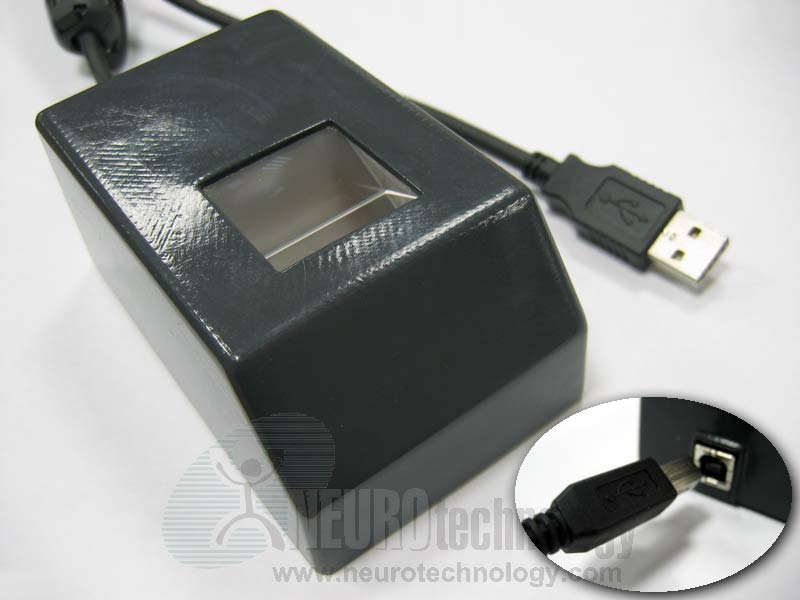

General view
Green Bit DactyScan26 fingerprint scanner, general view
Click to zoom

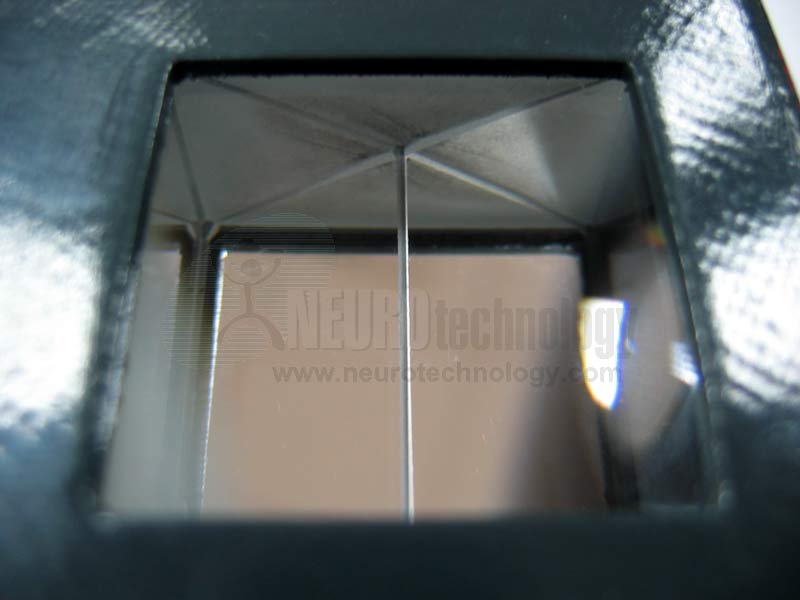

Close-up on sensor
Close-up on Green Bit DactyScan26 fingerprint sensor
Click to zoom

DactyScan26 from Green Bit is an optical USB 2.0 fingerprint scanner that is able to scan 2 fingerprints simultaneously. The scanner is certifed by FBI as PIV single finger capture device compliant with IAFIS IQS (Integrated AFIS Image Quality Specifications).

DactyScan26 combines large scanning area (1" x 1") with relatively compact general size. It is available as either a standard desktop unit or as OEM module for hardware integration.

The scanner is able to eliminate latent fingerprints.

Support modules for this sensor are included in MegaMatcher 6.0 SDK, MegaMatcher On Card 3.5 SDK, VeriFinger 8.0 SDK and Free Fingerprint Verification SDK. Note that FFV SDK will allow to capture only single fingerprints using this scanner as it does not include fingerprint segmentation components.

Support modules for this device are not included in the newer versions of the mentioned SDKs, including the newest MegaMatcher 9.0 SDK, MegaMatcher On Card 9.0 SDK and VeriFinger 9.0 SDK.

Specifications

Scanner Name DactyScan26
Manufacturer Green Bit S.p.A.
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Resolution 500 ppi
Image capture area (Platen size) 25 x 25 mm (1.0" x 1.0")
Sensor type Optical
Device size 59 x 98 x 40 mm (2.3" x 3.9" x 1.6")
Device weight 130 grams (0.3 lbs.)
Operating temperature +5°C ~ +40°C
Operating humidity 10% ~ 90% (non-condensing)

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.
