AuthenTec AF-S2 (FingerLoc)

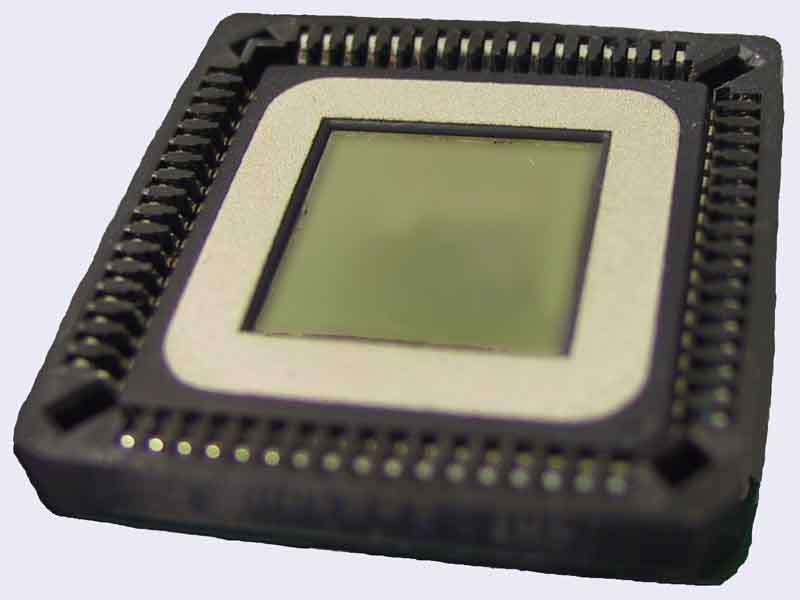

Close-up on sensor
AuthenTec AF-S2 (FingerLoc) fingerprint sensor
Click to zoom

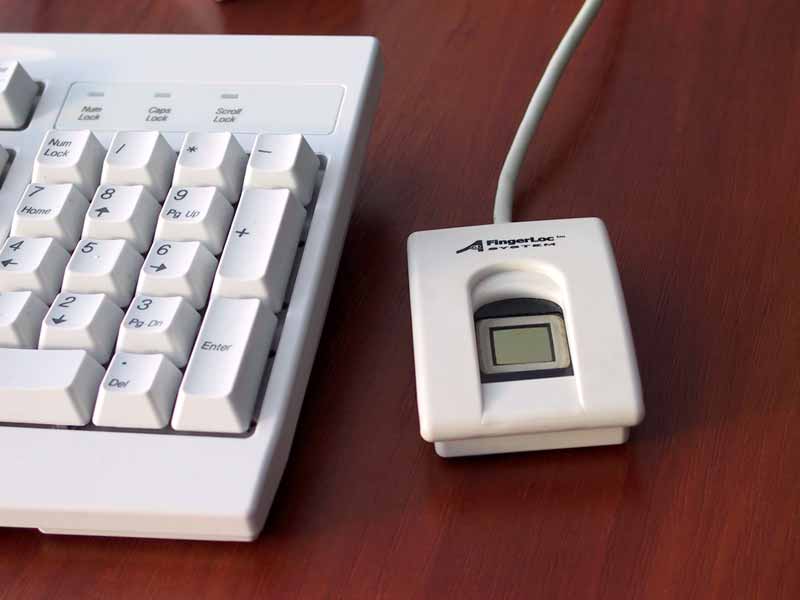

Sample fingerprint scanner based on AF S2 sensor
AuthenTec AF-S2 (FingerLoc) fingerprint sensor
Click to zoom

AuthenTec AF S2 is a 250 ppi fingerprint sensor intended for integration into various embedded and PC platforms. The sensor has a serial interface connection.

Sensor's manufacturer specifies that AF S2 has rugged packaging and is scratch resistant, thus allowing to use it in harsh outdoor environments. Sensor's surface coating is hard enough to withstand impacts and long-time usage.

The sensor is no longer manufactured.

Support modules for this sensor are included only in Free Fingerprint Verification SDK.

Specifications

Sensor Name FingerLoc AF-S2
Manufacturer AuthenTec, Inc.
Connection Serial
Supported OS (*) Microsoft Windows (32-bit), Linux (32-bit)
Resolution 250 ppi
Image capture area (Platen size) 13 x 13 mm (0.5" x 0.5")
Fingerprint image size 128 x 128 pixels
Sensor type Capacitive
Sensor Size 24 x 24 x 3.5 mm (0.94" x 0.94" x 0.14")
Operating temperature -20°C ~ +70°C

* These operating systems are supported by Neurotechnology SDKs. Device manufacturers may have different lists of supported operating systems.

Other AuthenTec sensors

Neurotechnology SDKs also include support modules for these AuthenTec sensors:

  • AES2550 – 500 ppi capacitive swipe sensor
  • AES2660 – 500 ppi capacitive swipe sensor
  • AES2810 – 500 ppi capacitive swipe sensor with on-chip hardware security module
  • AES2501B – 500 ppi capacitive swipe sensor, no longer manufactured
  • AES4000 – 250 ppi capacitive sensor for flat fingerprints
