VistaEY2 Dual Iris & Face Camera

Buy VistaEY2
at Biometric Supply,

a subsidiary of Neurotechnology.

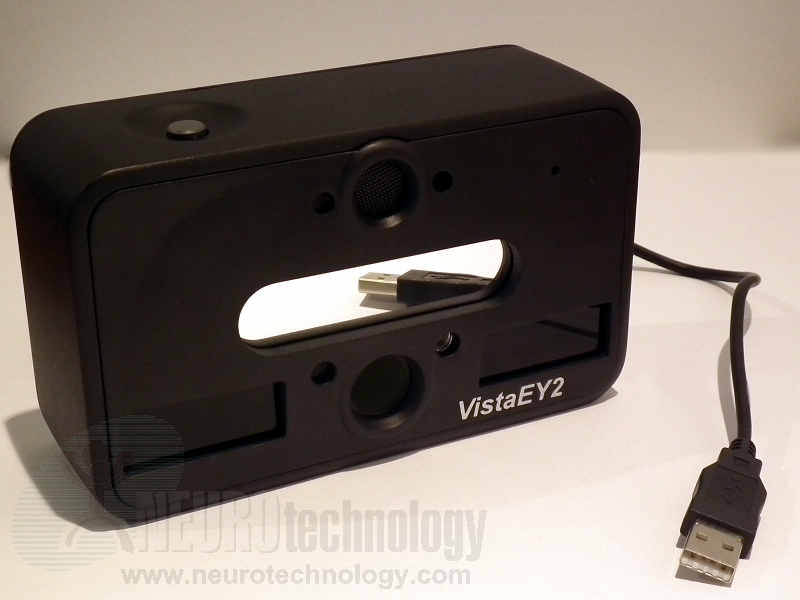

Front view
VistaEY2 Dual Iris and Face Camera
Click to zoom

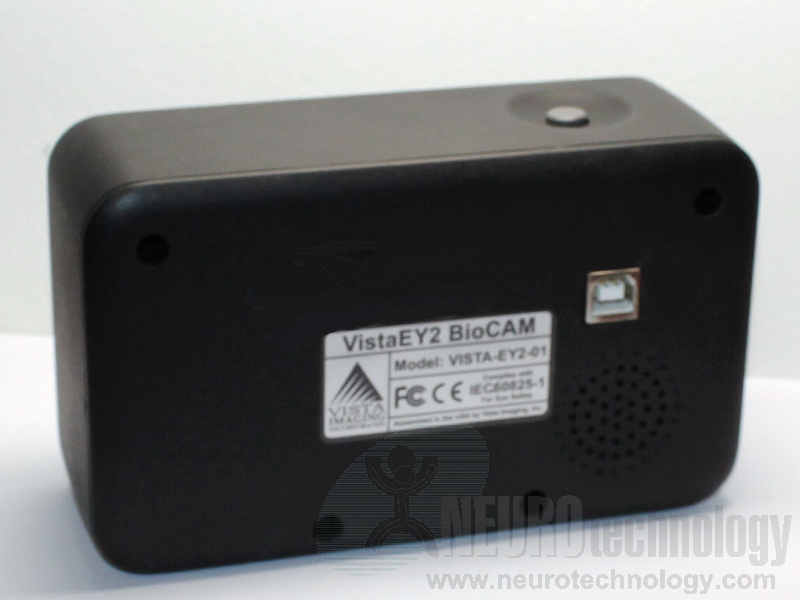

Back view
VistaEY2 Dual Iris and Face Camera
Click to zoom

The VistaEY2 from Vista Imaging is a multimodal USB 2.0 biometric device that is able to capture dual iris images and face images. The device is also able to capture audio input.

Multi wavelength infra-red illumination, distance sensing technology, integrated mirror and LED are used to improve iris images capture. An integrated flash allows to capture faces in low-light environments. The device also includes integrated microphone and speaker that provide 16 KHz 16-bit audio I/O.

Device manufacturer specifies that captured iris images are ISO/IEC 19794-6 compliant and face images are ISO/IEC 19794-5 compliant.

Neurotechnology SDKs allow to use the device for iris, face and voice capture. Support modules for this scanner are included in:

Specifications

General
Device Name VistaEY2 Dual Iris & Face Camera
Manufacturer Vista Imaging, Inc.
Distributor Corvus Integration, Inc
Connection USB 2.0
Supported OS (*) Microsoft Windows (32-bit and 64-bit)
Device size 140 x 89 x 51 mm (5.5" x 3.5" x 2.0")
Device weight 300 grams (10.5 oz)
Iris scanner
Iris capture distance 38 cm (15.0")
Iris image size (*) 2 images, 640 x 480 pixels
Eye illumination Multi wavelength infrared
Face capture camera
CMOS sensor resolution 3.2 Megapixel
Face image size 2048 x 1536 pixels

* This value is obtained when using Neurotechnology products. Device manufacturers may specify different value for this specification.

Where to order this device?

Buy VistaEY2 at Biometric Supply – a subsidiary of Neurotechnology.

Other Vista Imaging devices

Neurotechnology SDKs also include support modules for:

  • VistaEY2-02 – dual iris & face capture device with iris liveness detection.
  • VistaEY2H – dual iris capture device with iris liveness detection.
  • VistaEY2R – dual iris & face capture device with iris liveness detection and automatic tilt with face tracking.
  • VistaFA2 – single iris & face capture device.
  • VistaFA2E – single iris & face capture device, in full enclosure for advanced applications.
